Brown Davis - 12 Volt Medium Power Board - Redarc

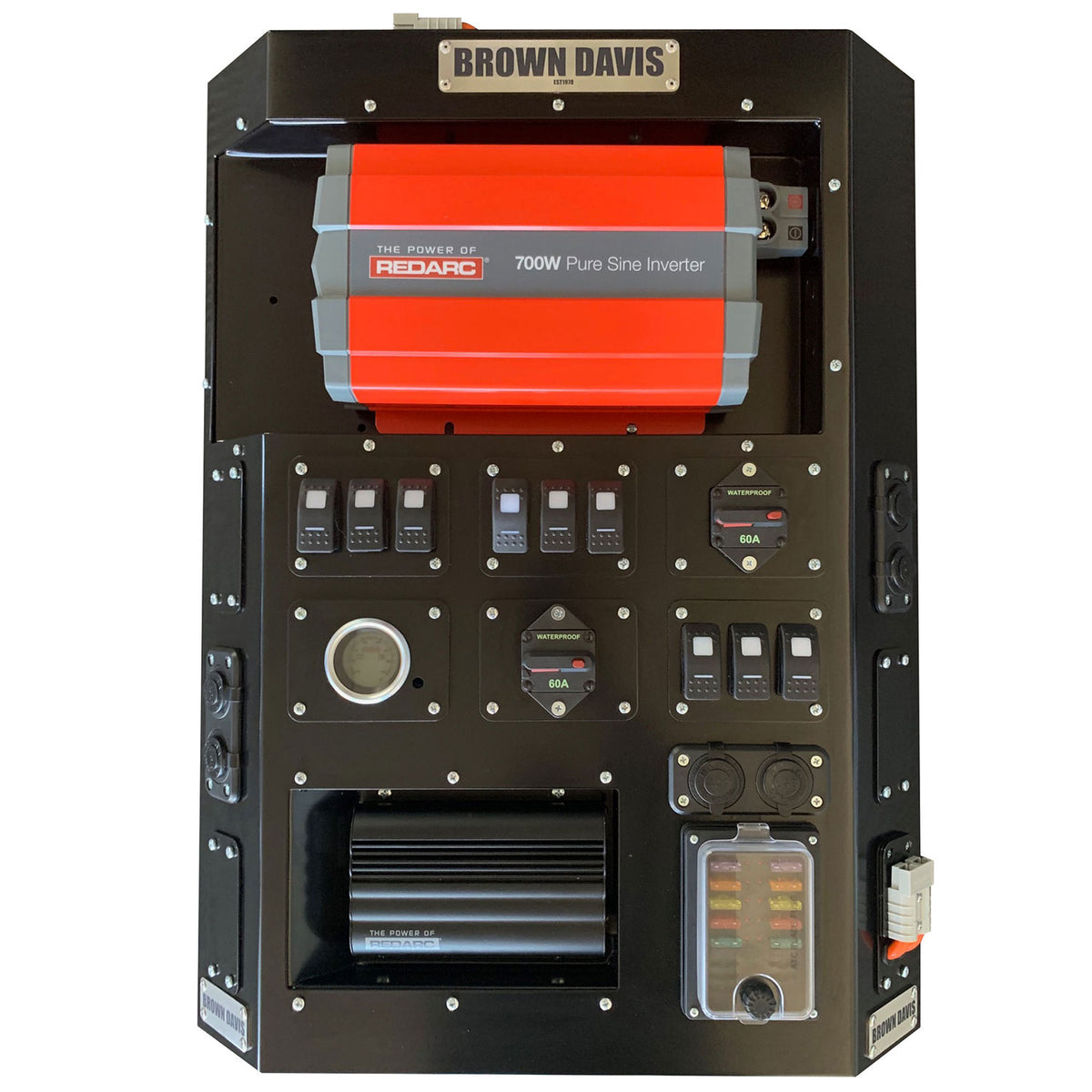

Step up to a larger 12 volt setup with the Brown Davis MED-P-BOARD medium power board, laid out for a Redarc inverter and in-vehicle charger. It gives your charger, inverter, fuse block, switches and sockets one solid mounting point.

The board measures 525 x 695 x 85mm and suits Redarc 350W, 700W and 1000W 12V pure sine wave inverters (R-12-350RS, R-12-700RS, R-12-1000RS). It is compatible with Redarc BCDC1250D, BCDC1240D, BCDC1240D-LE, BCDC1225D, BCDC1220 and BCDC1220-IGN chargers, plus the Narva 54445BL 10-way weatherproof fuse block. It comes with 80 x 40mm plates (2 Anderson plug plates and 9 blanking plates) and 105 x 80mm plates (4 blanking plates, 3 switch panels, 1 circuit breaker panel and 1 52mm pod panel). Electrical hardware is not supplied.

Key features:

• Room for a Redarc inverter and DC charger
• Compatible with Narva switches, gauges, plugs and circuit breakers

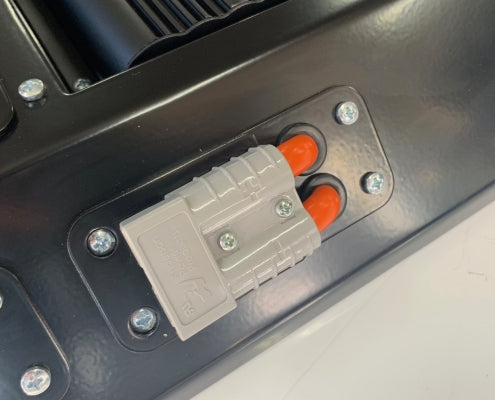

• Anderson plug plates included
• Board only, electrical hardware sold separately

Plan your 12 volt build and pick up your power board from The 4x4 Store.
