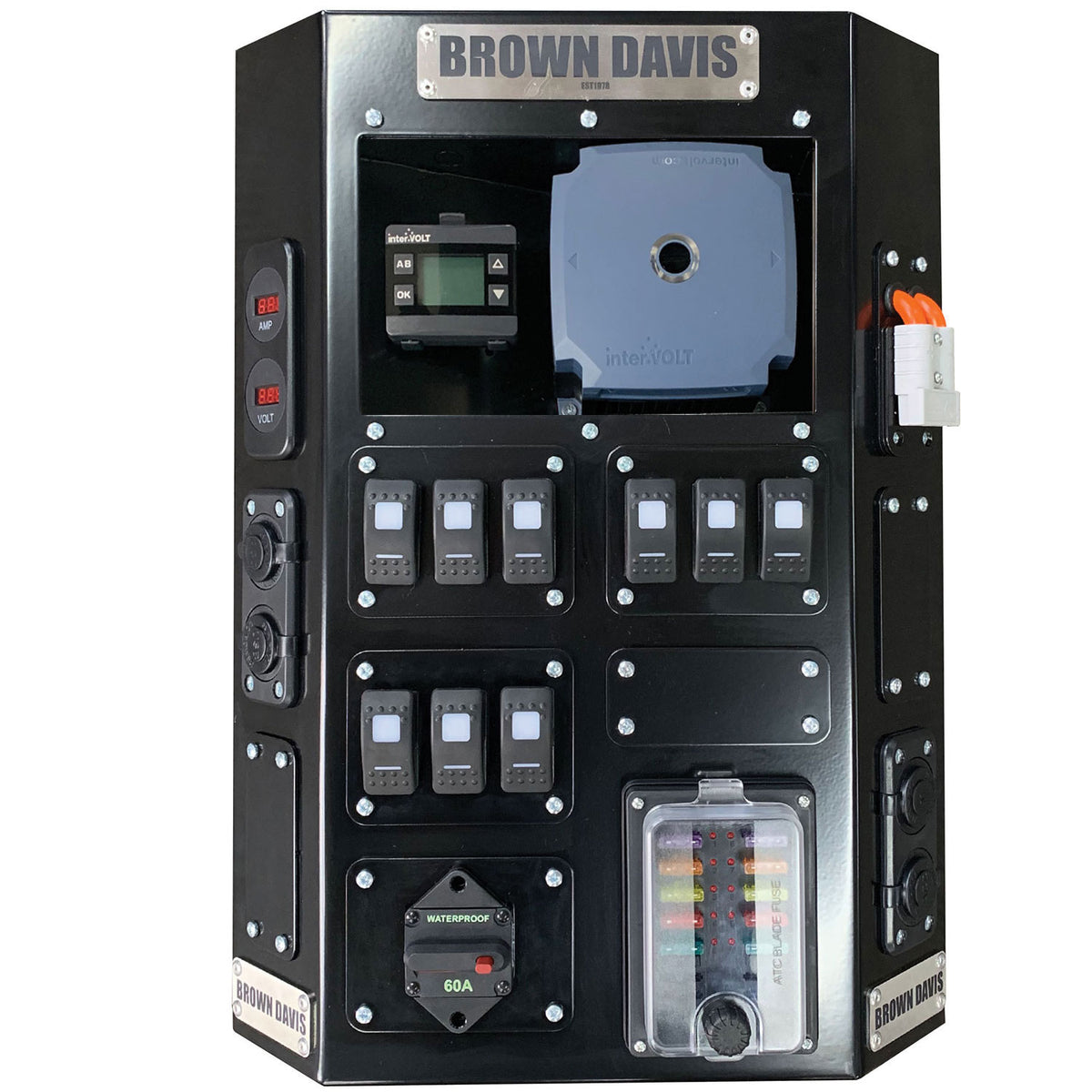

Brown Davis - 12 Volt Power Board - Intervolt

This Brown Davis 12 volt power board gives you a ready-made panel to build your own in-vehicle power system around an Intervolt charger. It brings your battery charger, accessories and circuit breakers together in one tidy unit.

The board, part number SM BOARD-2, measures 505 x 365 x 75mm and is compatible with the Intervolt DCC Pro R2-0 battery charger and the Narva 10-way weatherproof fuse block (part 54445BL). It comes with 80 x 40mm plates: two Anderson plug plates and nine blanking plates. It also includes 105 x 80mm plates: four blanking plates, three switch panels, one circuit breaker panel and one 52mm pod panel, with no electrical hardware supplied.

Key features:

• Laid out for a battery charger, accessories and circuit breaker
• Compatible with the Intervolt DCC Pro R2-0 charger

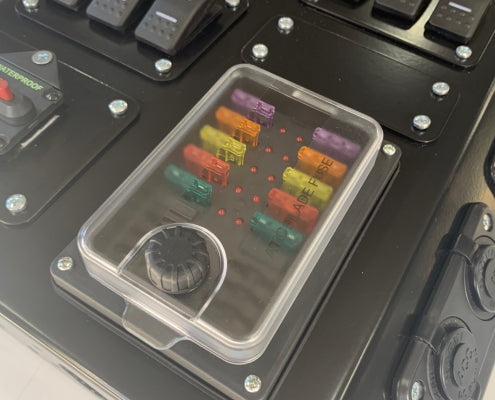

• Takes a Narva 10-way weatherproof fuse block

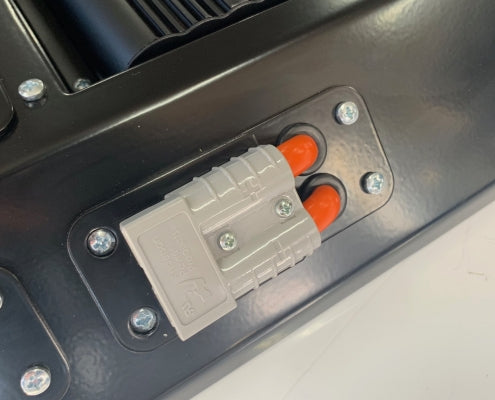

• Plates for Anderson plugs, switches, breakers and a 52mm gauge pod
• Board only, electrical hardware not included

Choose your own sockets, switches and gauges, then build the setup you need with a power board from The 4x4 Store.
