Mazda BT-50 UP/UR - On Board Air Compressor Mount

On-Board Air Compressor Mount Kit

SUITS: Mazda BT-50 2012-2020

The Scrub King On-Board Air Compressor Mount Kit provides a secure and discreet mounting solution for your ARB air compressor under the rear seat on the right-hand side of the vehicle.

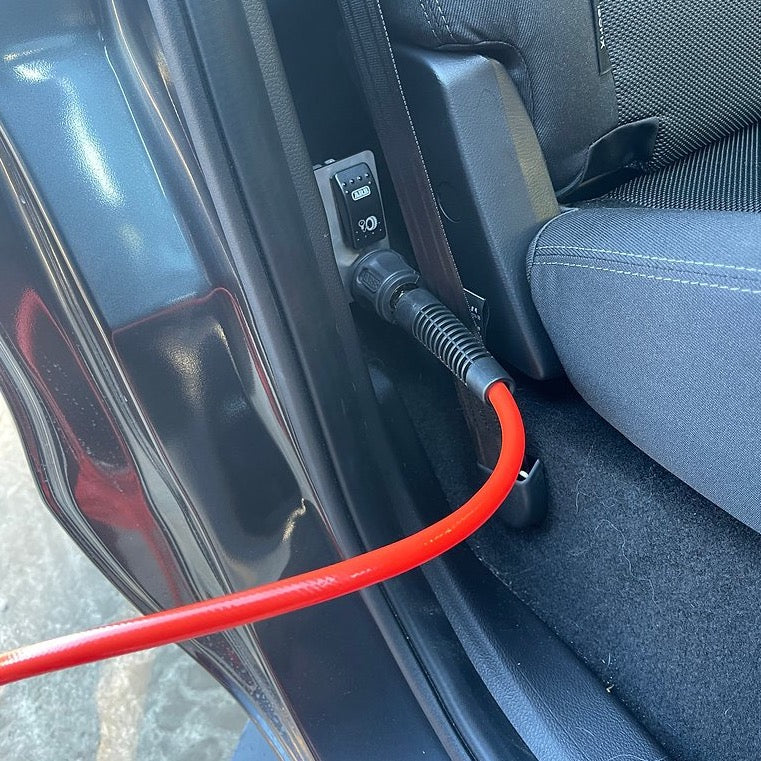

Designed to make use of otherwise wasted space, the compressor sits neatly underneath the factory carpet and rear seat while the supplied air outlet and switch bracket is positioned beside the rear seat for easy access.

Perfect for a range of onboard air applications, including:

• Inflating tyres
• Operating air lockers
• Airbag inflation
• Running air tools
• Winch free-spooling
• General compressed-air applications

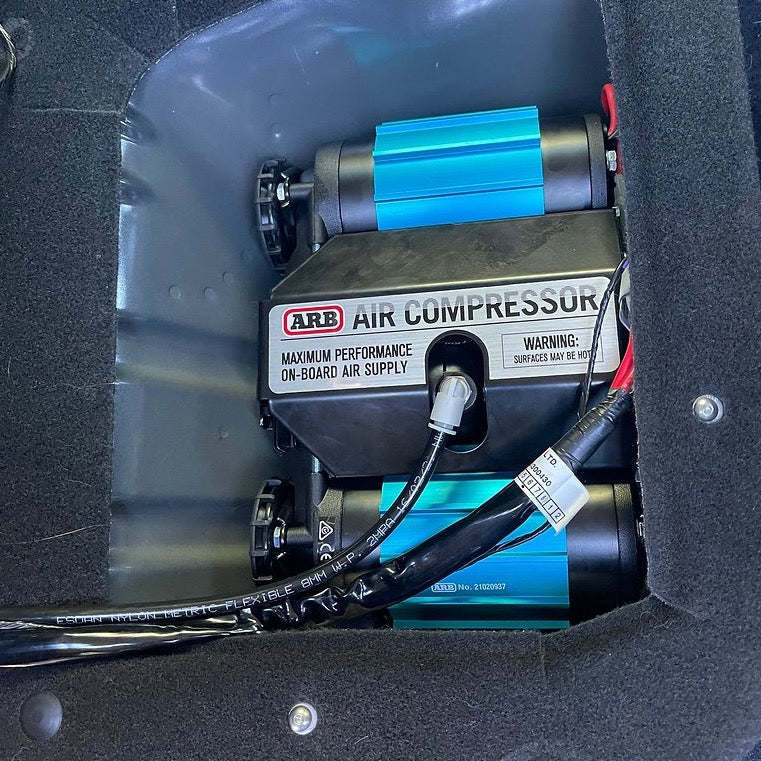

The compressor is securely mounted to the supplied bracket, with the air line routed underneath the rear seat to the outlet bracket.

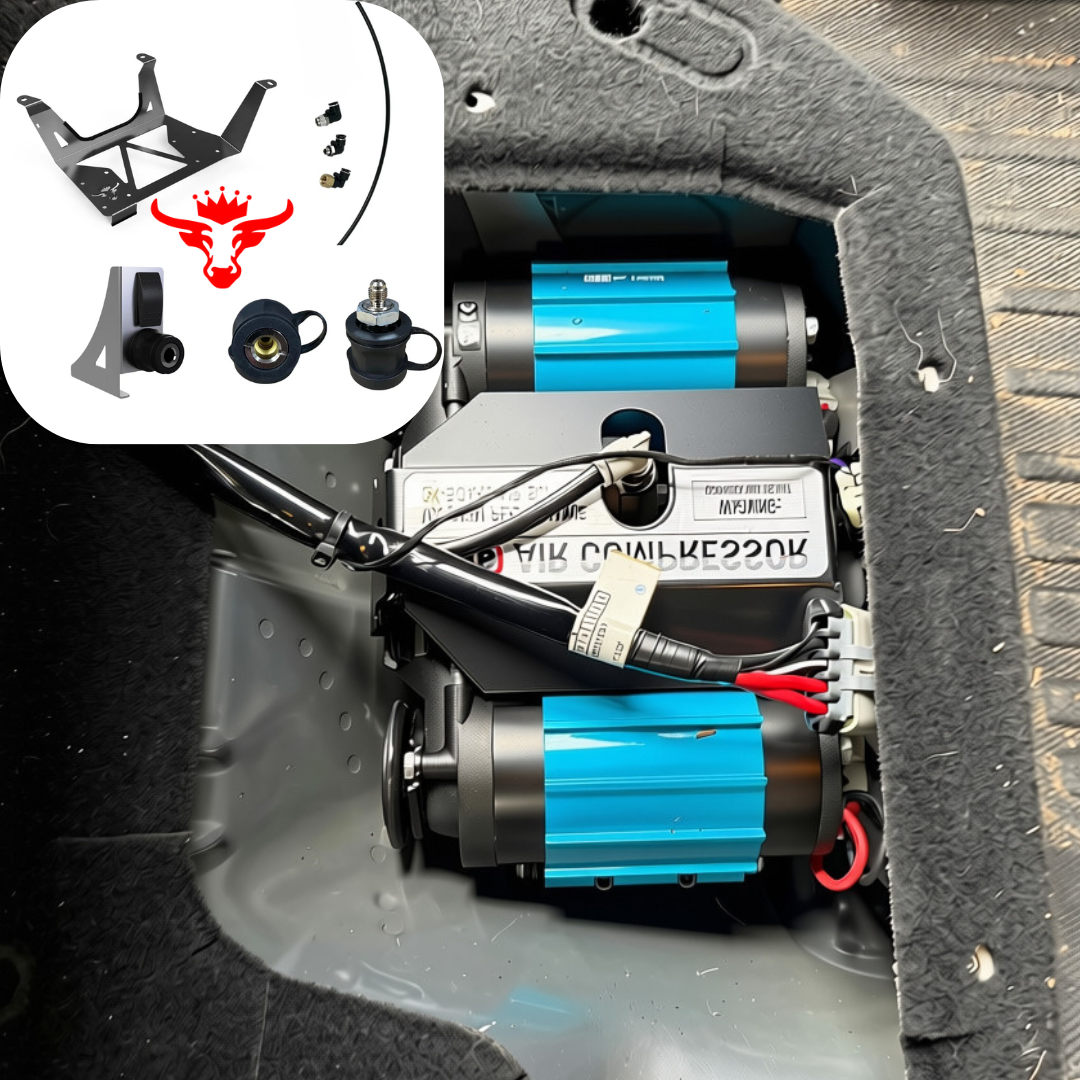

Kit Includes

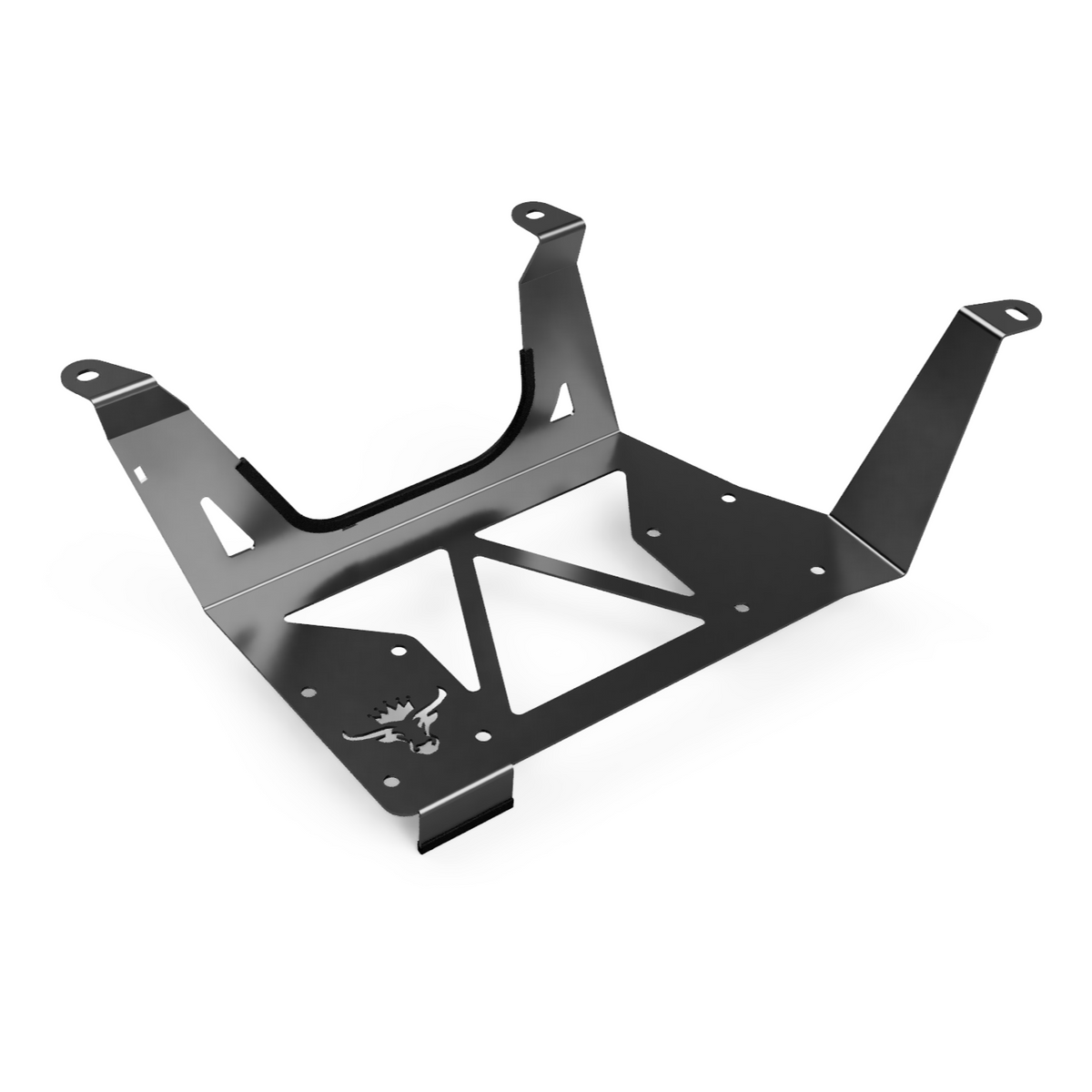

• 1 × Compressor Mounting Bracket
• 1 × Switch & Air Outlet Bracket
• 1 × ARB Hose Coupling
• 1 × -4 to 1/4" 90° Tube Adaptor
• 1 × 1/4 BSP to 1/4" Tube 90° Adaptor
• 1m × 1/4" Nylon Tube
• Required mounting hardware

Key Features

• Under-seat compressor mounting
• Right-hand side installation
• Keeps the compressor neatly tucked away
• Easy-to-access air outlet and switch
• Heavy-duty steel construction
• Matte black textured powder-coated finish
• Utilises factory mounting locations
• Includes air outlet bracket, coupling, tube and fittings
• Clean and secure installation
• Designed and manufactured in Australia

Optional Extras

ARB Air Compressor
Compatible with ARB onboard air compressor setups. Add your compressor to create a complete onboard air system.

Outlet Protector
A CNC-machined aluminium protector designed to keep dust, dirt and debris out of your air outlet when not in use, helping protect the coupling and any equipment connected to it.

Please Note: Compressor wiring may require modification or extension depending on your setup. Electrical work should be completed by a trained professional.
