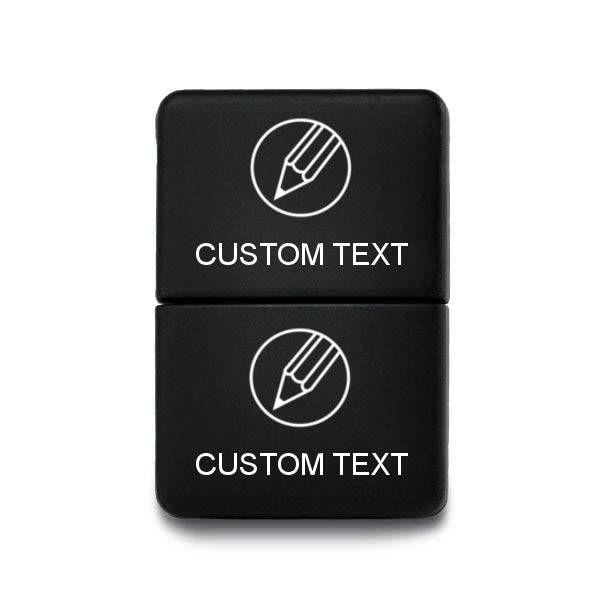

Custom Dual Input/Output Switch to suit Isuzu/Mazda 3rd Gen - On - Off (Latching) / (On) - Off (Momentary)

This custom dual input switch suits the 3rd generation Isuzu D-Max (Sept 2020 onwards) and Mazda BT-50 (Oct 2020 onwards). Two independent inputs mean you can run spotlights off high beam and work lights off the battery, each with its own control.

The LED lights white through the dash light circuit and turns blue once switched on. The housing is black PC/ABS with an 18mm x 28mm cut out. It is rated to 3 amps at 12 volts and must be used with relays. Lightforce lists the SWADP6 8 pin adaptor for direct connection to its Genesis/Venom LED harness (LFDLHTS), so check that pairing with us first.

Key features:
• Dual inputs, dual independent outputs
• White at rest, blue when on
• Positive switched vehicles only
• 300mm harness included
• Choice of latching or momentary per switch

Speak to The 4x4 Store about matching this switch with the right harness.

This listing: On - Off (Latching) / (On) - Off (Momentary).
