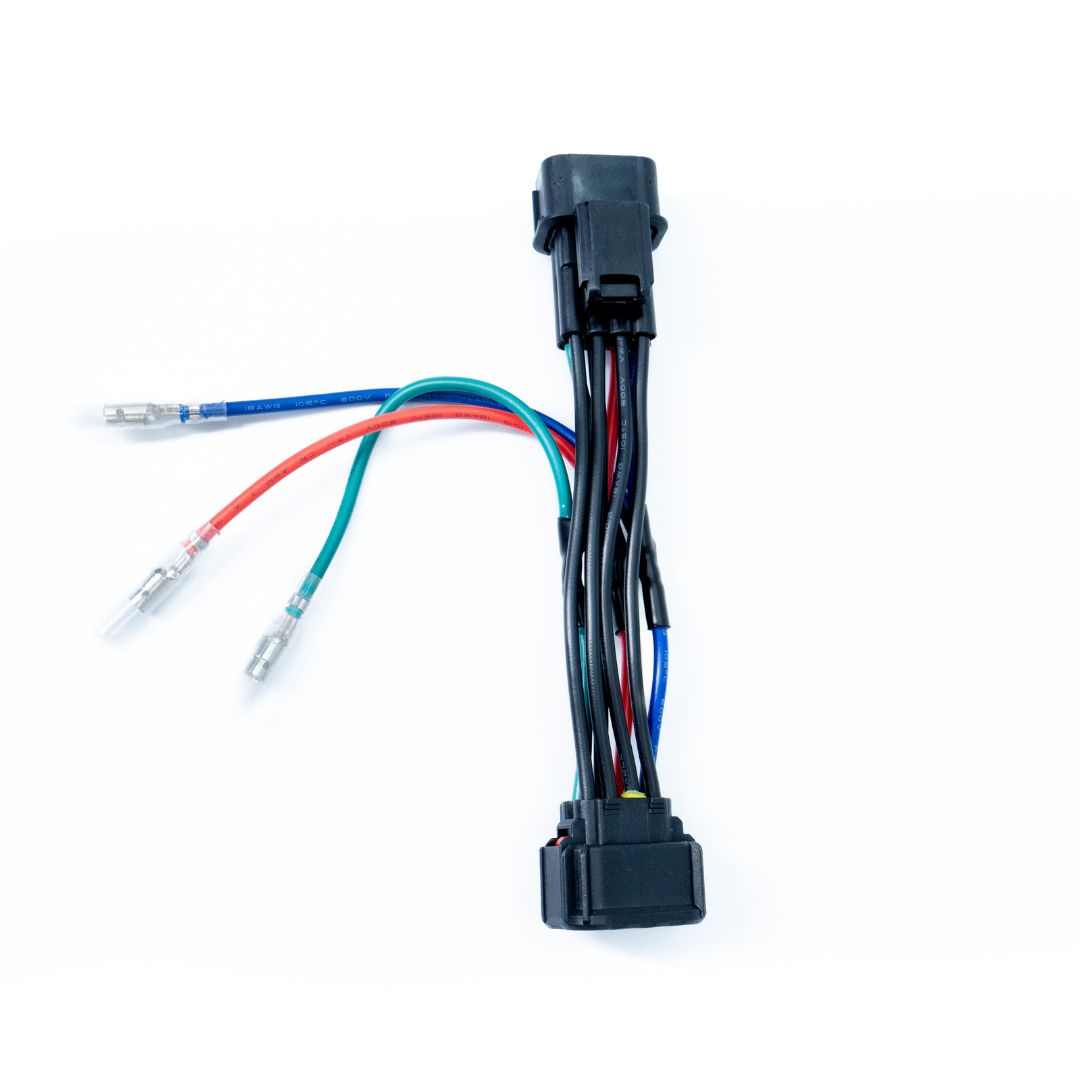

Headlight Patch Harness Suits Mazda BT50 MY25 2025 - Current

This patch harness is made for the Mazda BT-50 MY25, 2025 onwards. It provides a safe tap into the headlight assembly for Lightforce driving light harnesses, without cutting or splicing into factory wiring.

Fitting happens at the factory 8-pin headlight connector, on the lower back of the headlight assembly, left or right side. Press the locking tab, pull the factory connector off, then click one new connector onto it and the other onto the headlight. The 150mm harness gives a red high beam positive pickup, a green high beam negative pickup and a blue low beam pickup for optional use. Combined with Lightforce wiring harnesses and factory-style switches, it allows a simple plug and play DIY install.

Key features:
• Suits Mazda BT-50 MY25, 2025 onwards
• 8-pin plug-in connection at the headlight
• High beam positive, negative and optional low beam pickups
• No cutting or splicing
• 150mm harness

Fitting driving lights to your BT-50? The 4x4 Store can supply the patch harness, harness and switch together.
