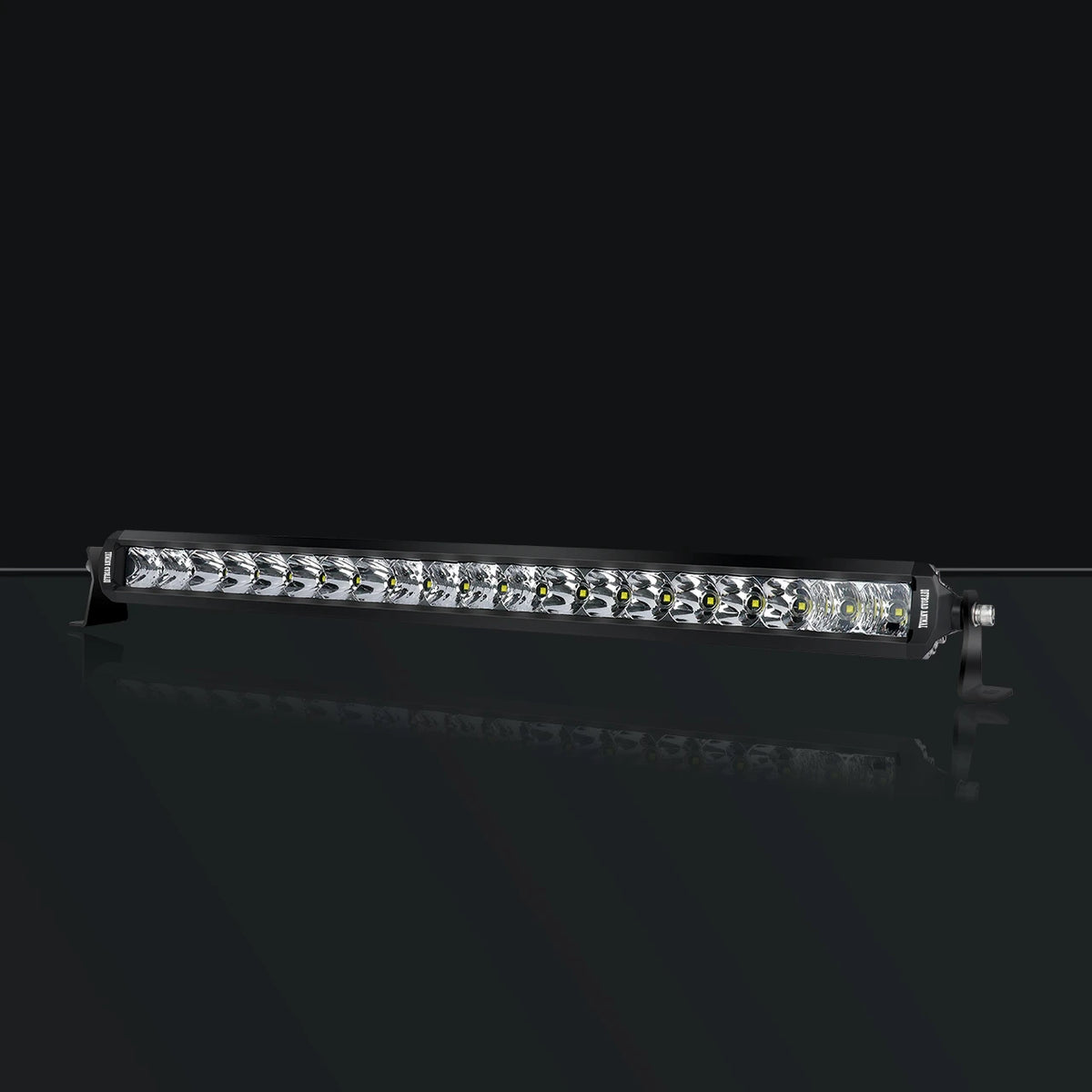

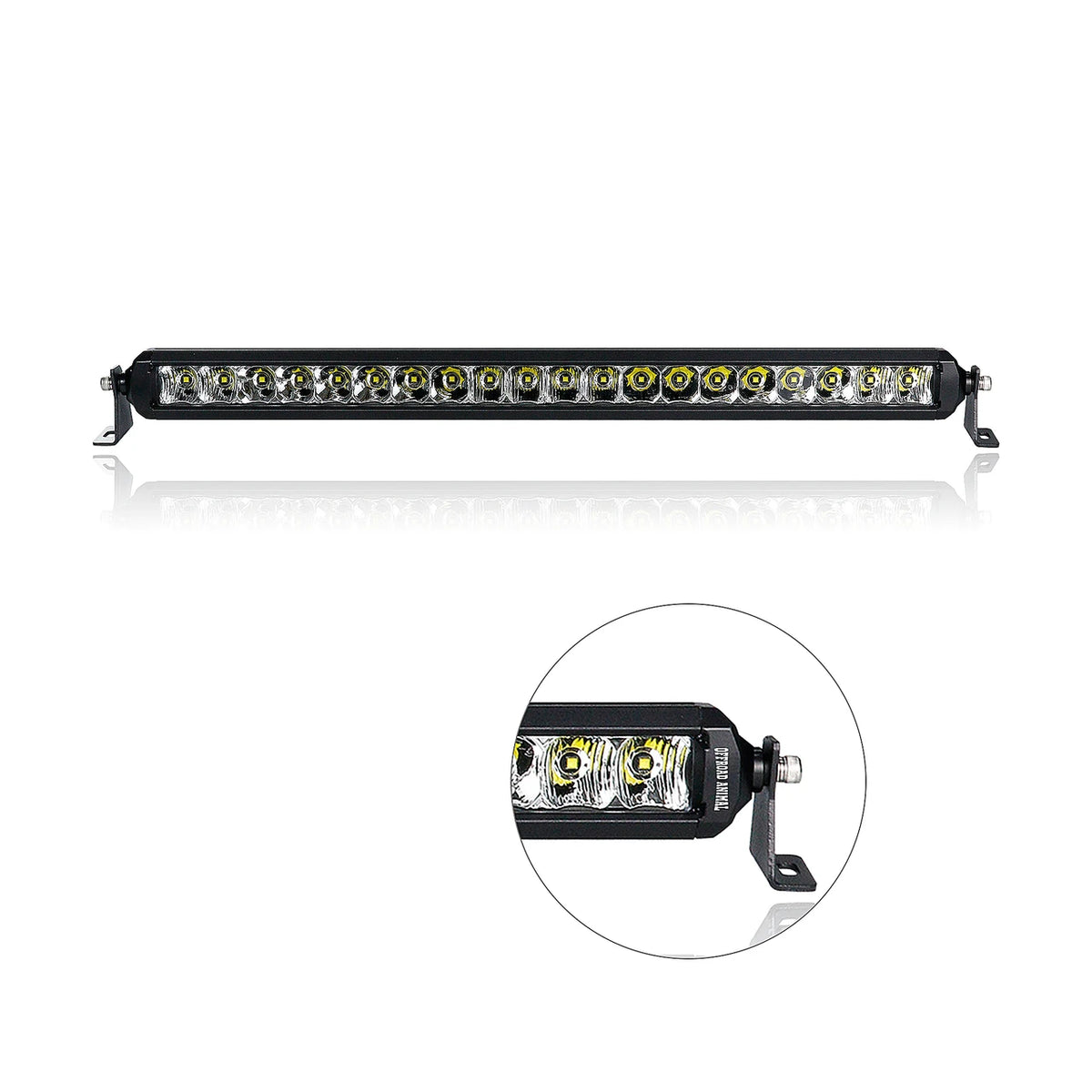

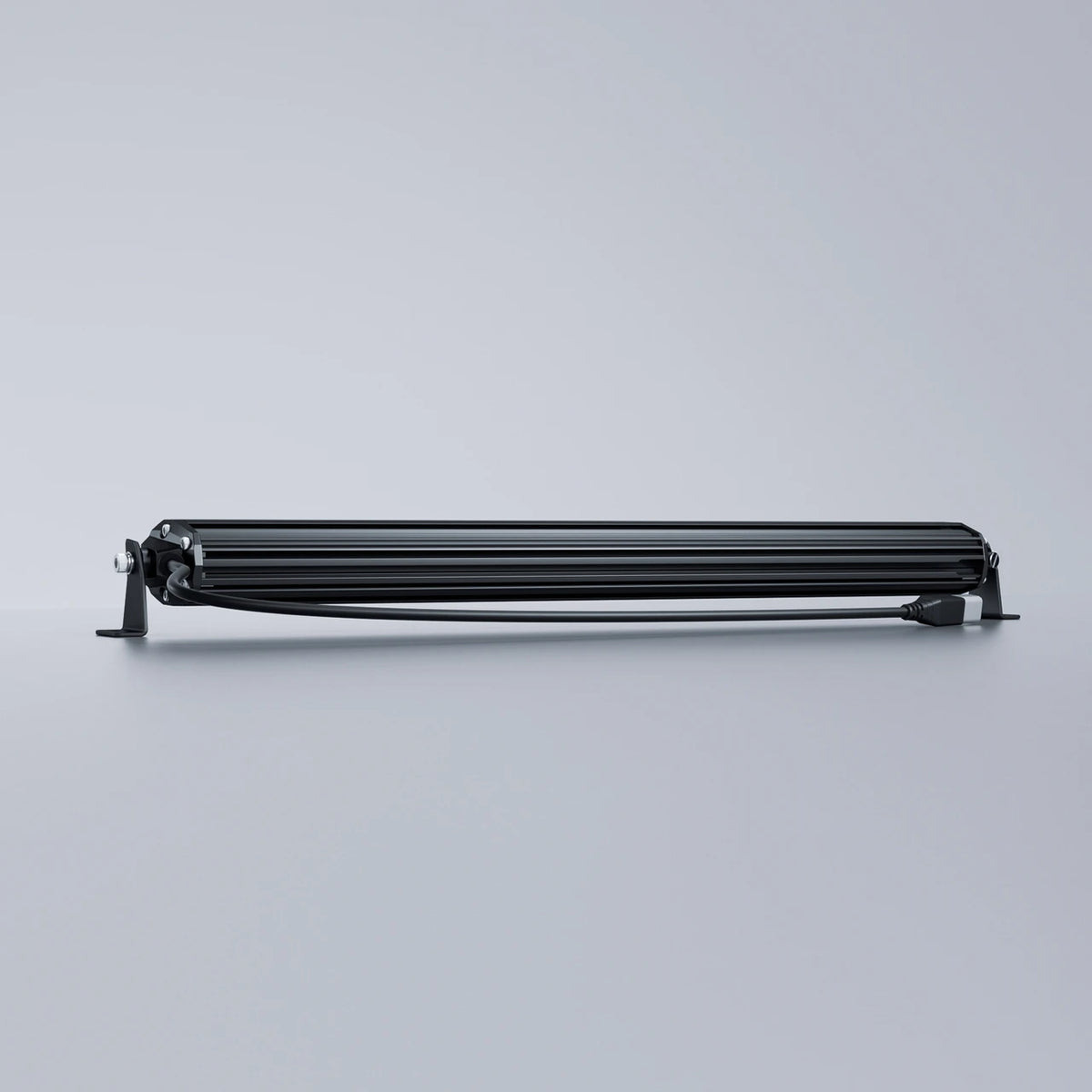

Offroad Animal Slim 22 inch LED light Bar

SKU:
ORA-ALO-S5D1-20

$185.00

Check in-store availability

Optional extras

INSTALLATION OPTIONS

Driving Lights / Light Bar Installation in OE Style Switch (2 hrs) $350.00 Bullbar Installation (5.5 hrs) $825.00 Winch Installation (2 hrs) $300.00

LIGHTS / LIGHTBARS

Lightforce Striker Professional Edition LED Driving Light - Twin Pack $507.00 Roadvision LED Driving Light 8in Stealth S8 + Halo Ring (Pair) Inc Rdwk Harness $950.00

WINCHES

WARN VR EVO 10-S Electric 12V DC Winch Synthetic Rope $1,399.00 WARN ZEON 12-S 12000lbs 12V Electric Winch $3,299.00

OPTIONS AMOUNT $0.00

Final total $0.00

Compact Profile, Maximum Output
Updated Design - 24% Brighter
New Under-mount brackets included

Constructed with the same robust and highly efficient DNA as our flagship Rogue 8.5 driving lights to deliver our highest output light bar to date whilst also having the lowest profile.

Features

IP69K Waterproof rating

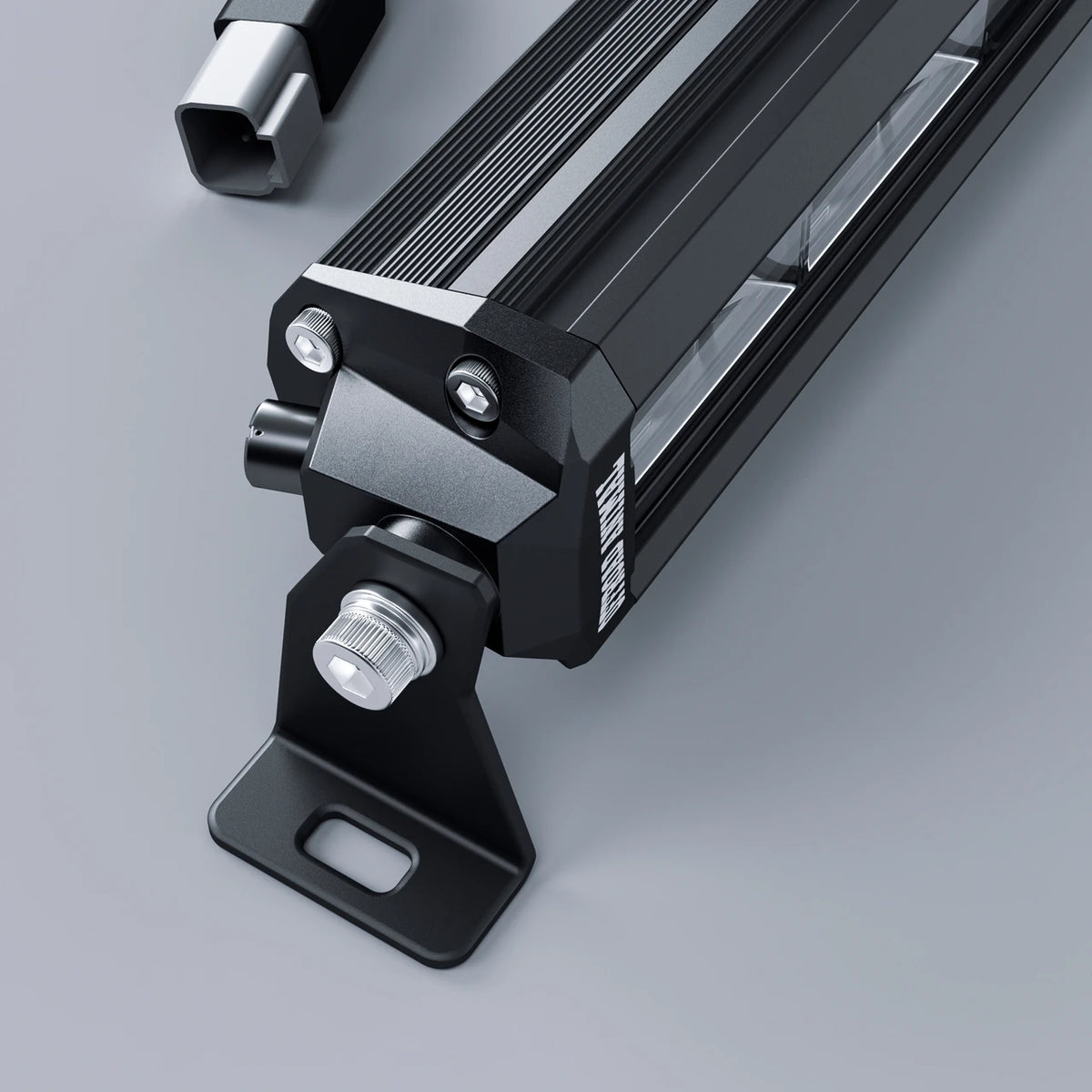

Under-mount Brackets
Over, under and reverse current protection
9800 Lumens
CREE 5W XTE
Input: 11-30V DC
Oversized heat sinks with reduced wind noise design

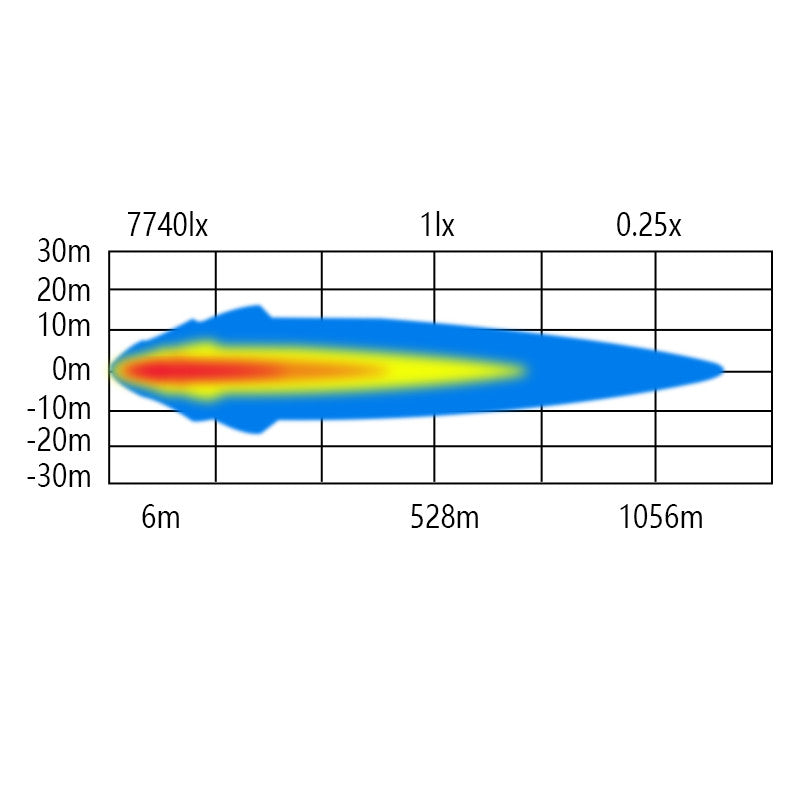

5º spot + wide spread flood parabolic reflectors - highly polished, individually mounted
Side brackets included
Wiring Harness included
Lifetime Warranty
Dupont non fading paint

IP69K WATERPROOF

We set out to offer a driving light which is virtually impenetrable. The first step was replacing silicone glue sealing to a custom O- Ring seal. Silicone sealing offers initial protection, throw in dust, heat, pressure washing and over time they are susceptible to dry rot, cracking, shrinking and becoming brittle. Our solid O – Ring design utilises a polymer which flexes during heat variations and pressure changes whilst being firmly compressed into place.T he end result; Surpassing standard IP69K rating of 1450PSI water jetting with a staggering 3200PSI at 80ºC. Give it all you’ve got and marvel as the light stands up to any weather condition.

RUGGED NEVER LOOKED BETTER

Over, under and reverse current protection.
GE Lexan Lens – Non fading, virtually indestructible
100% electromagnetic (EMC) and radio frequency interference (RFI) protected
IP69K 3200psi hot water jetting sealed and certified.
Gore breather valve – pressure equalisation, anti fogging.
Boost LED driver wide range 11-30V DC input.
Dupont high UV and abrasion resistive paint.

DETAILS

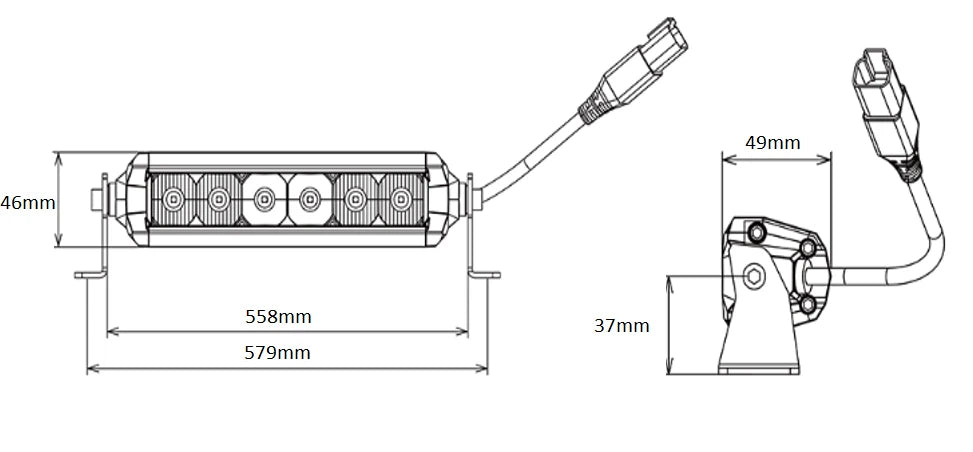

Delta_LB_Dimension_Combined.png?v=161415

SPECIFICATIONS

WARRANTY	Lifetime
LEDS	CREE 5W XTE
FINISH	DuPont Midnight Paint
WATERPROOF RATING	IP69K
INPUT VOLTAGE	11-30V DC
LUMEN MAINTENANCE	LM-80 50,000 hours
INCLUDED WIRING HARNESS	14 Gauge Dual DT Output, Negative and Positive switched headlight compatible
LENS	GE Lexan Lens 3mm - over 200x impact resistance of glass.
BREATHER VALVE	Gore-Tex

WHAT'S INCLUDED

Supernova Delta 22″ LED Light Bar (1)

Mounting Brackets and Bolts

Deutsch DT02 2 Pin Break Out Cable – For wiring in to a third party wiring loom

Supernova Fast Fit Single Wiring Harness (1)

Fast-Fit-harness-packaged_1.jpg?v=158572

Weight	5.0kg
Category	LED Light Bars
