25A Charge Equalizer
Regular price
$775.21
Sale price
$775.21
Regular price
Unit price
Check in-store availability
Description
Product Details

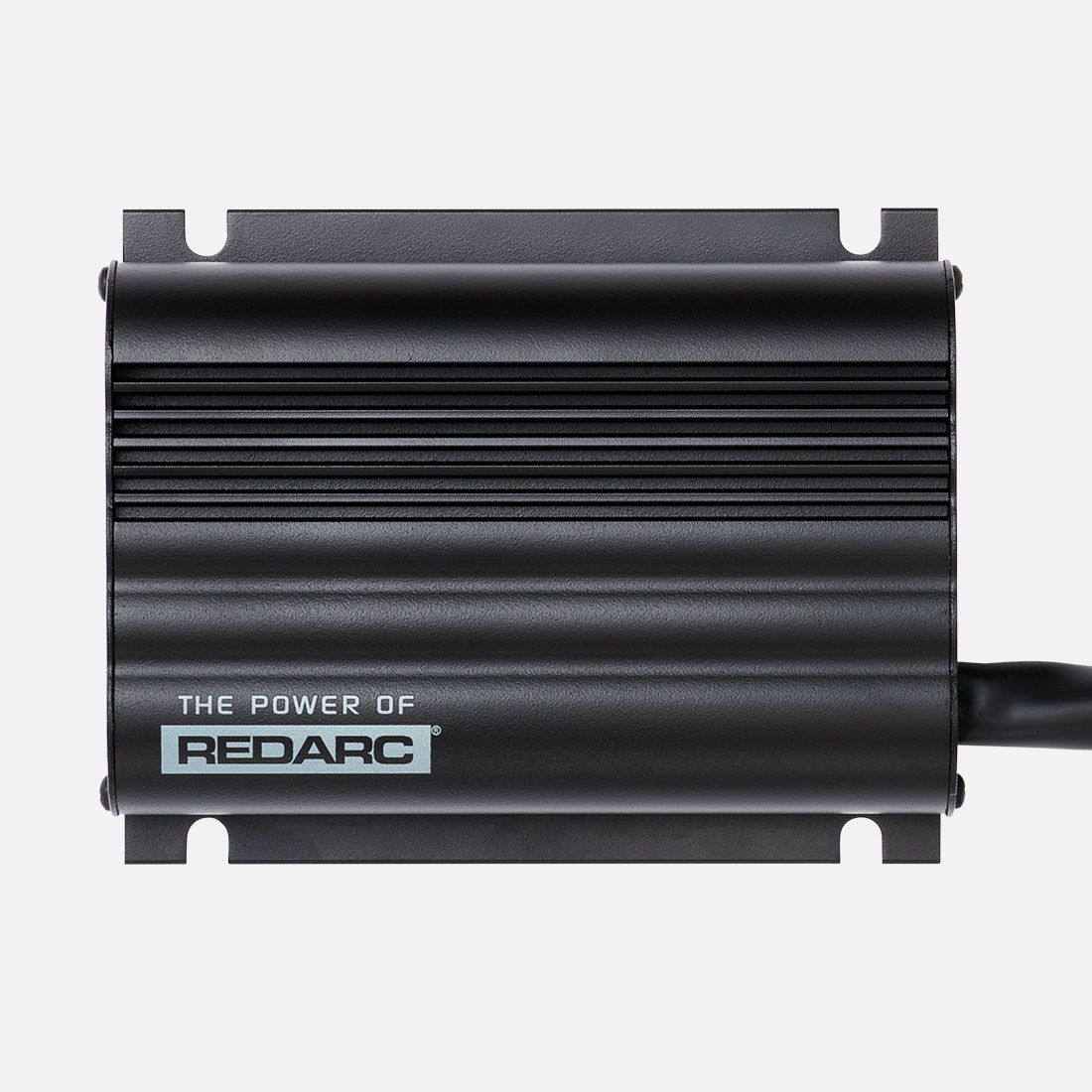

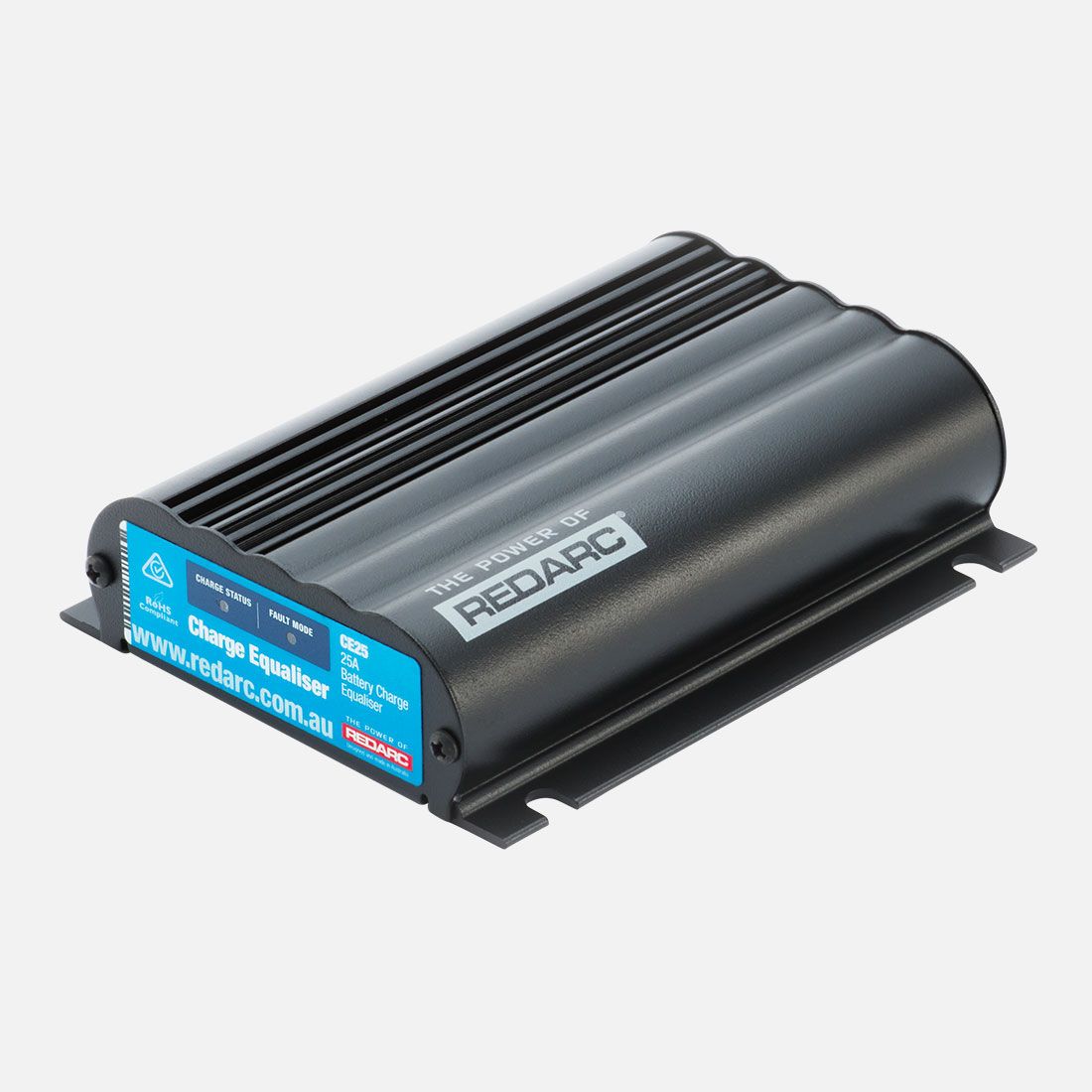

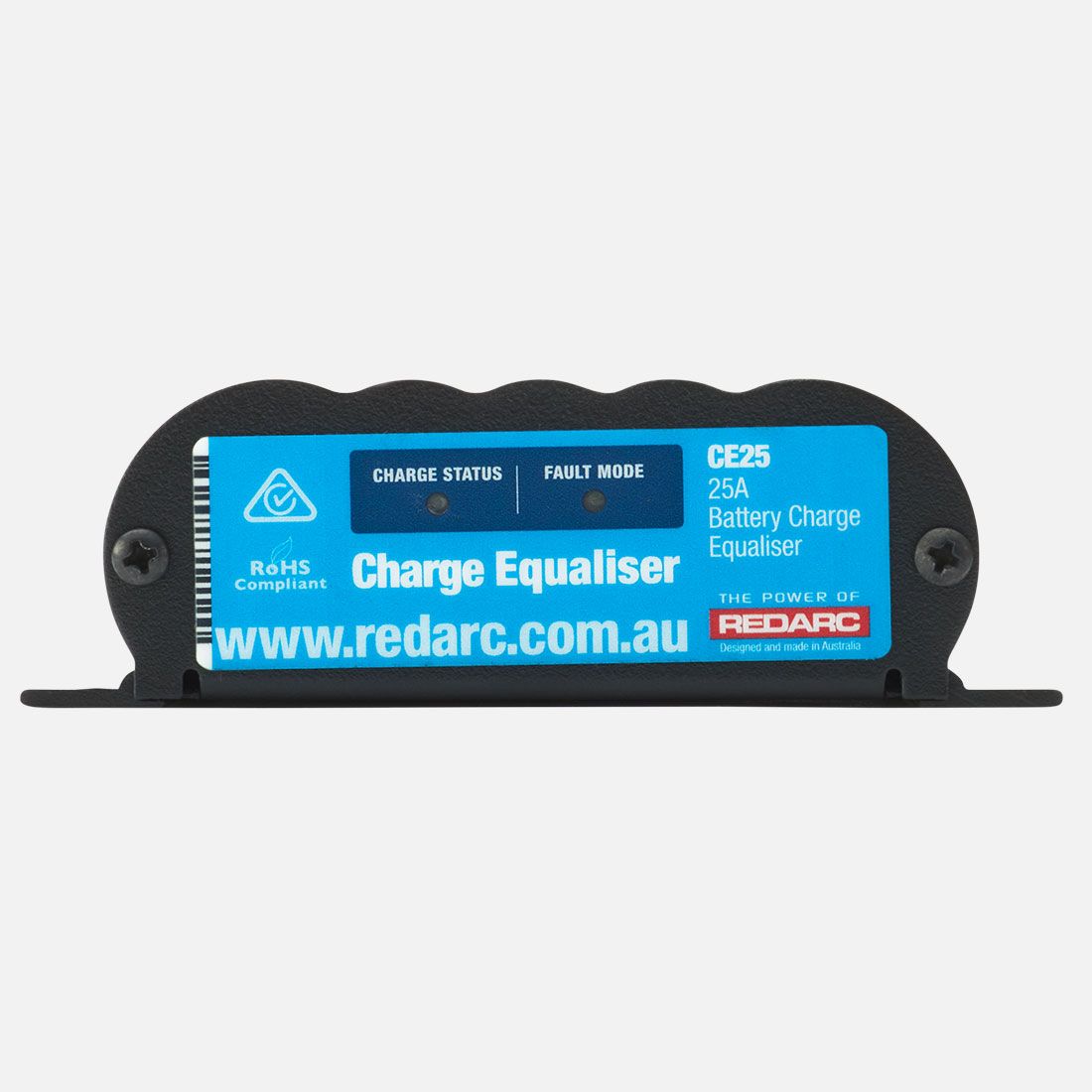

The REDARC 25A Charge Equaliser lets you tap a 12V supply from the centre of a series-connected, two battery 24V system while keeping both batteries equally charged. It is a practical choice when space or cost rules out a separate 12V battery.
Built on technology from the award-winning BCDC range, the CE25 delivers up to 25A and includes input isolation, so no input relay or isolator is needed. Because it draws from a battery rather than a current limited device, peak load currents are limited only by the battery. It accepts a 20 to 32V input, provides a 6 to 16V output, and operates from -20°C to 80°C. 40A input and output fuses are required but not supplied, with REDARC FK40 recommended.
Key features:
• 25A maximum output current
• Keeps 24V batteries equally charged
• Built-in input isolation
• Sealed for commercial applications
Backed by a 2-year REDARC warranty. The 4x4 Store team can help plan your 24V to 12V setup.
Built on technology from the award-winning BCDC range, the CE25 delivers up to 25A and includes input isolation, so no input relay or isolator is needed. Because it draws from a battery rather than a current limited device, peak load currents are limited only by the battery. It accepts a 20 to 32V input, provides a 6 to 16V output, and operates from -20°C to 80°C. 40A input and output fuses are required but not supplied, with REDARC FK40 recommended.
Key features:
• 25A maximum output current
• Keeps 24V batteries equally charged
• Built-in input isolation
• Sealed for commercial applications
Backed by a 2-year REDARC warranty. The 4x4 Store team can help plan your 24V to 12V setup.
| Category | Charge Equaliser |
|---|
