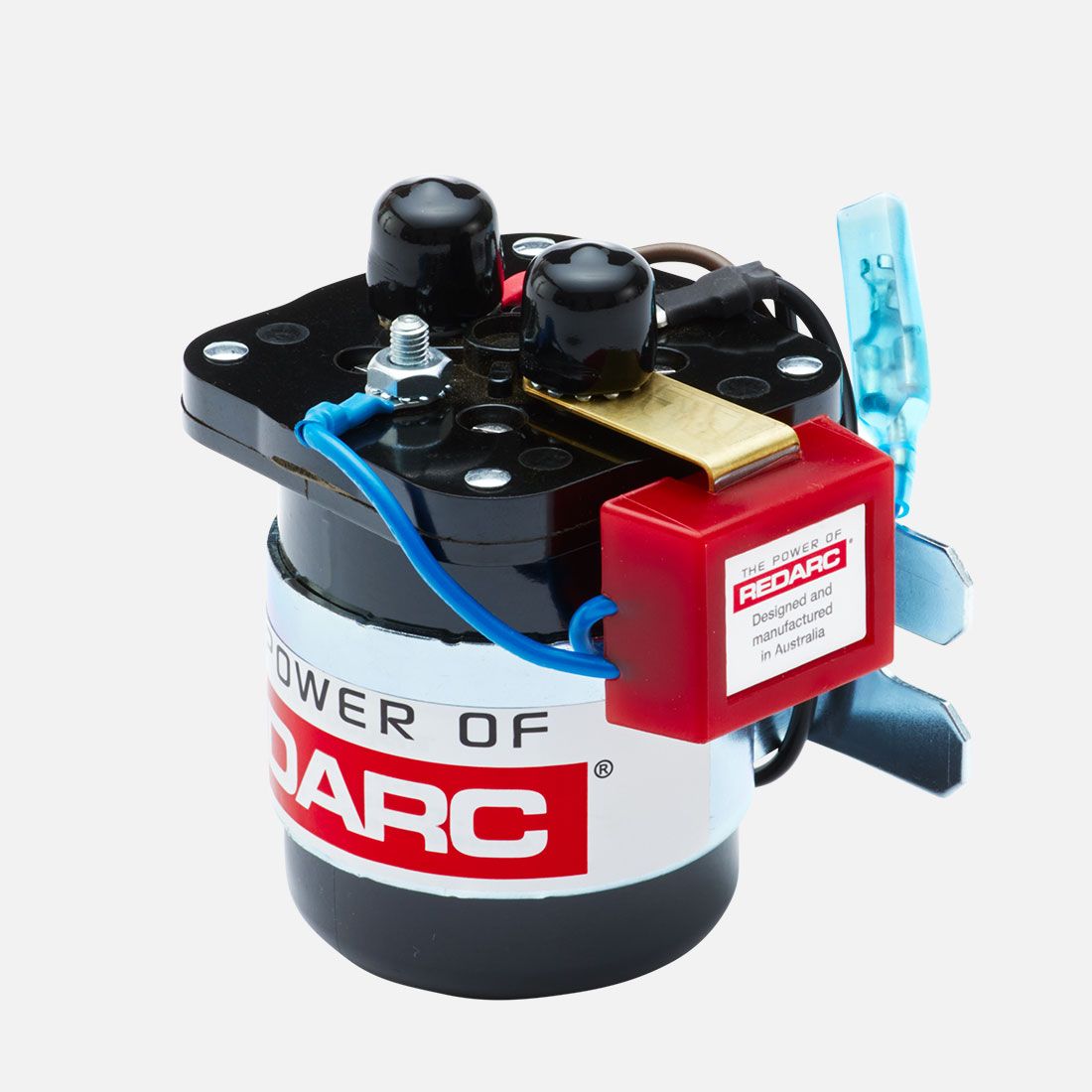

Smart Start SBI 24V 200A
Regular price
$555.01
Sale price
$555.01
Regular price
Unit price
Check in-store availability
Description
Product Details
For heavy-duty 24V setups, the REDARC Smart Start SBI224 isolates your start and auxiliary batteries at up to 200A continuous. Your start battery stays protected from excessive discharge while the auxiliary battery carries the non-essential loads.
Mostly used in commercial vehicle dual battery systems, the SBI224 switches in at 26.4V and out at 25.4V under microprocessor control. Choosing a solenoid isolator over a diode type reduces the voltage drop that comes with diode isolation, and built-in components stop the solenoid creating high voltage transients. LED indication reports over-voltage, voltage drop and excessive current draw faults, and standby draw is under 5mA. Pair it with a high quality fuse kit.
Key features:
• 200A continuous rating with 600A max inrush
• 24V DC system and output voltage
• Silver contacts suited to marine applications
• Fully surge protected, overmould construction
Backed by a 2-year REDARC warranty. The 4x4 Store can help confirm fuse sizing and cabling before you buy.
Mostly used in commercial vehicle dual battery systems, the SBI224 switches in at 26.4V and out at 25.4V under microprocessor control. Choosing a solenoid isolator over a diode type reduces the voltage drop that comes with diode isolation, and built-in components stop the solenoid creating high voltage transients. LED indication reports over-voltage, voltage drop and excessive current draw faults, and standby draw is under 5mA. Pair it with a high quality fuse kit.
Key features:
• 200A continuous rating with 600A max inrush
• 24V DC system and output voltage
• Silver contacts suited to marine applications
• Fully surge protected, overmould construction
Backed by a 2-year REDARC warranty. The 4x4 Store can help confirm fuse sizing and cabling before you buy.
| Category | Battery Isolator |
|---|
