20A Solar Regulator
Regular price
$157.31
Sale price
$157.31
Regular price
Unit price
Check in-store availability
Description
Product Details

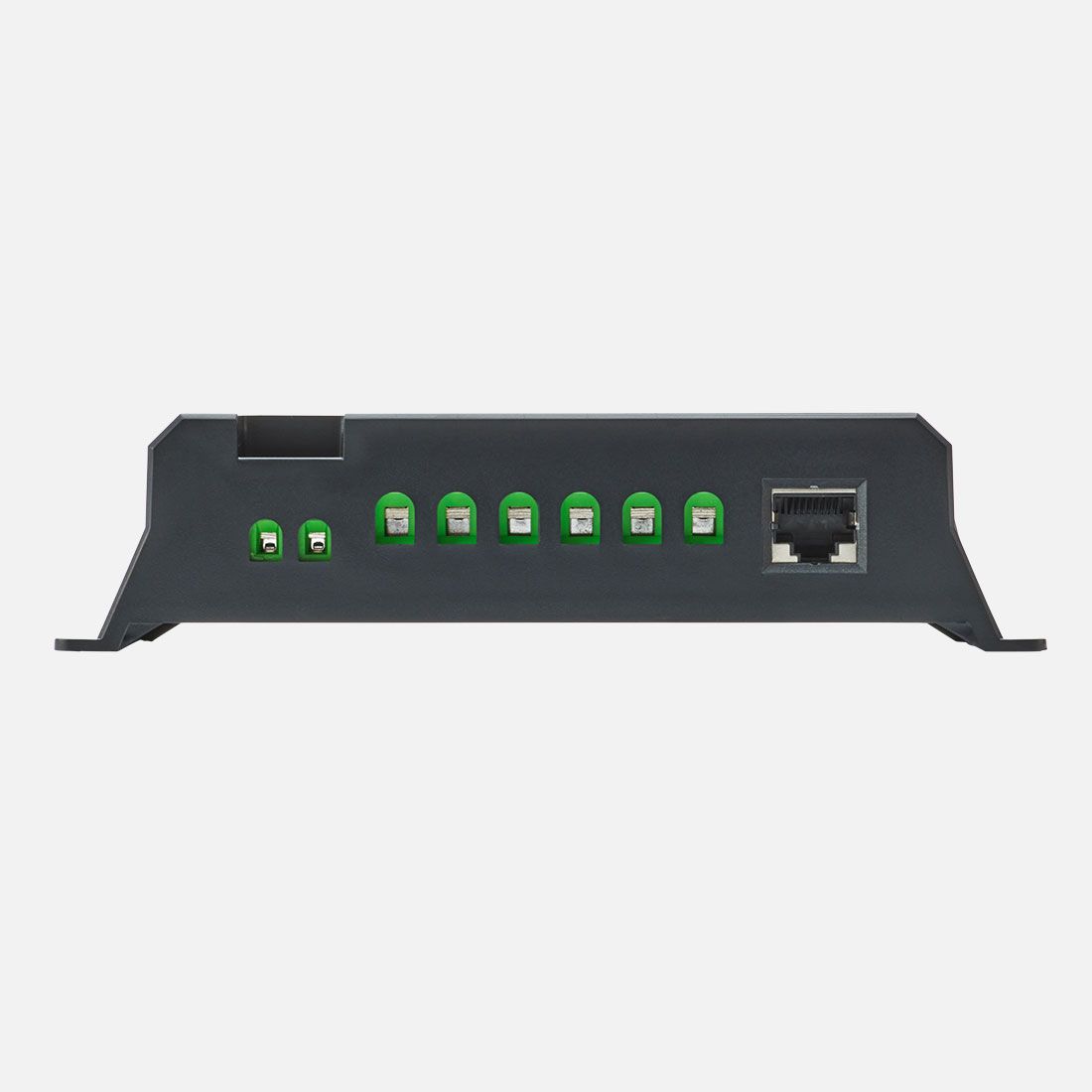

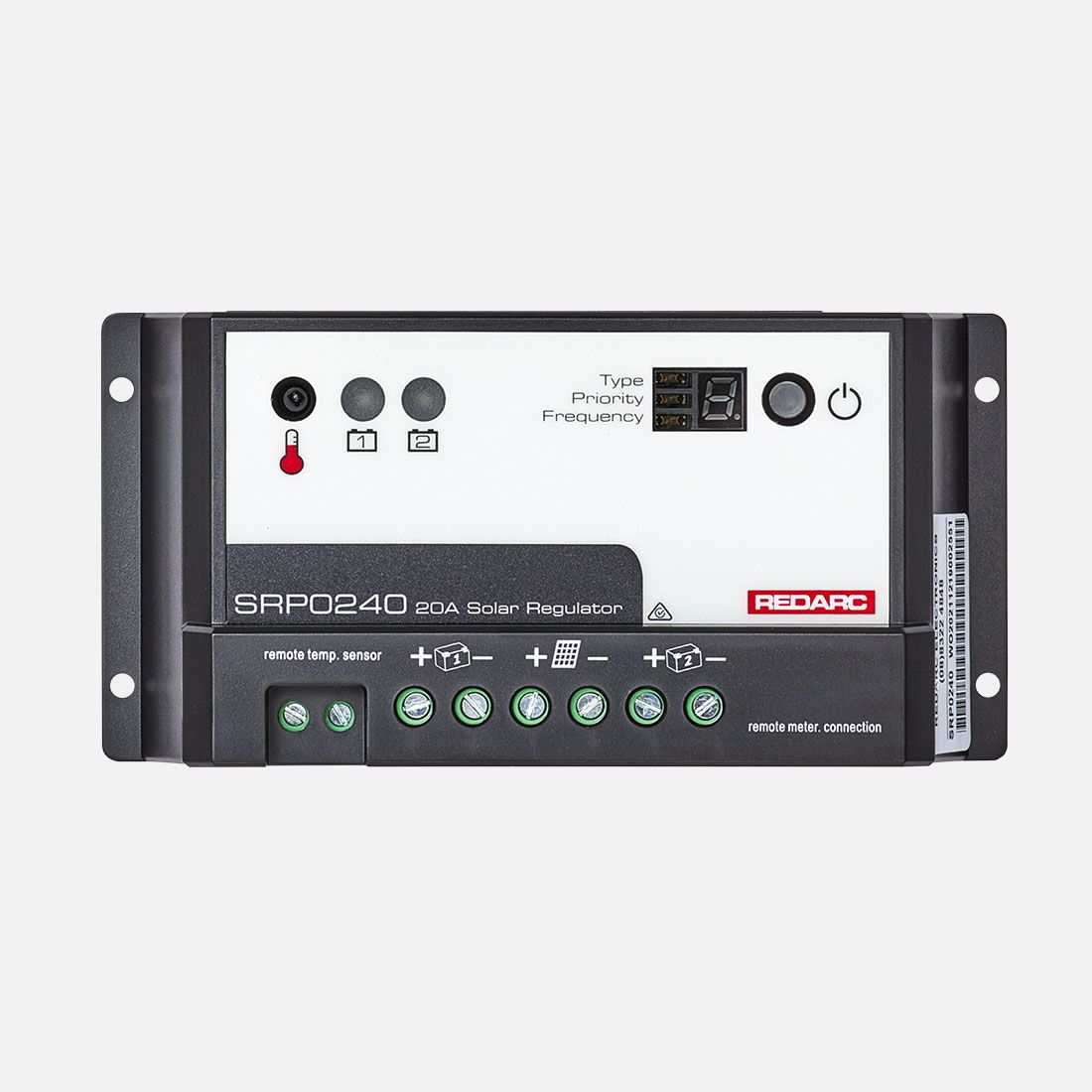

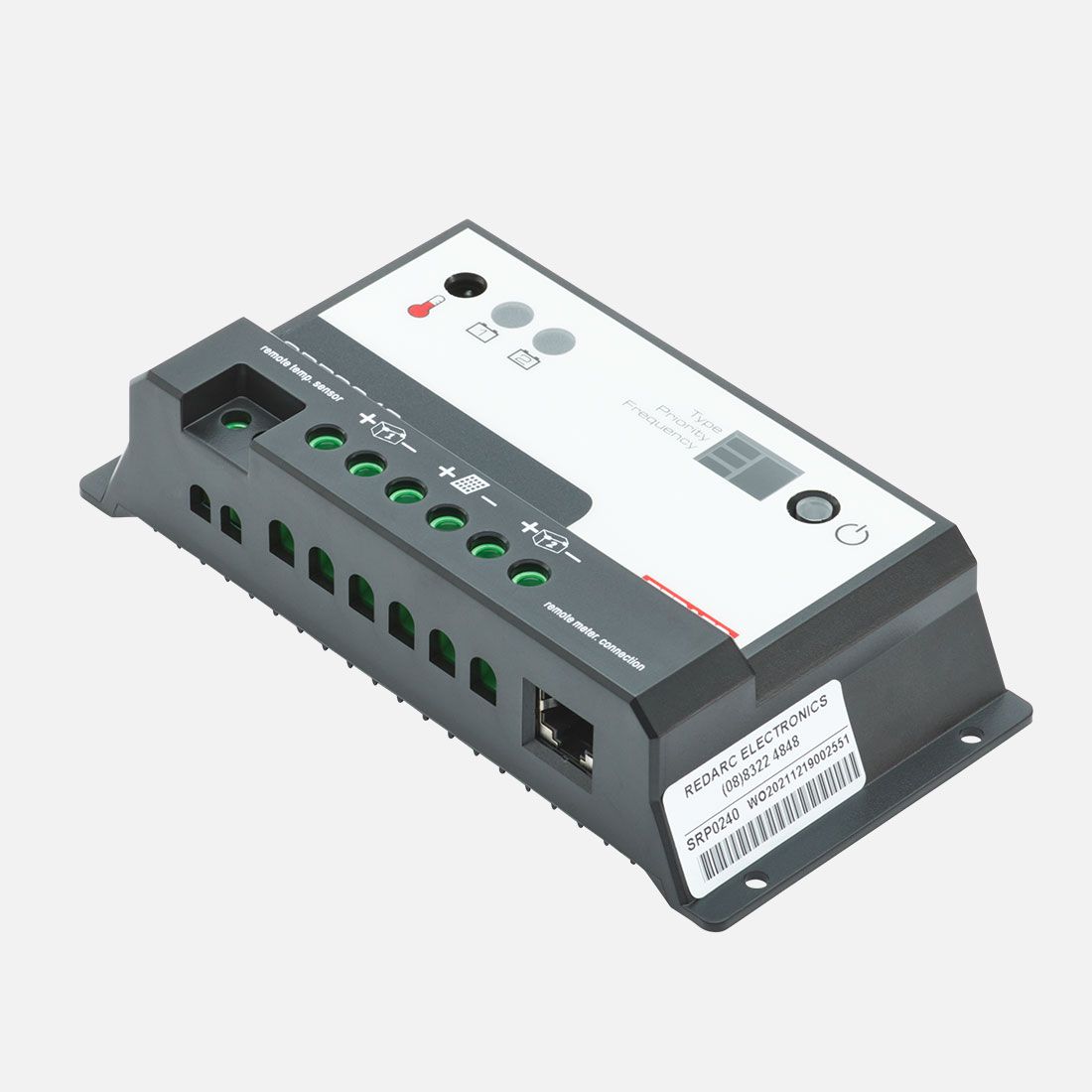

The REDARC 20A Solar Regulator (SRP0240) makes sure the power from your 12V or 24V solar panels is at the right voltage to charge your house or auxiliary batteries. It can charge up to two separate battery banks, which suits caravans and dual battery setups.
It uses multi-stage charging, with a current rating of 20A and a maximum charging voltage of 14.8V / 29.6V. Standby current is under 4mA, and LED indication shows charging status. The SRP range is primarily used with REDARC's SMR fixed solar panels. With the Anderson™ to bare wire cable (SRC0016), it also works with REDARC solar blankets and folding panels. The battery setting defaults to AGM, and the Solar Remote Monitor (SRP0240-RM) is recommended to change battery types and configuration. Not compatible with Lithium (LiFePO4) batteries.
Key features:
• Dual battery outputs
• Multi-stage charging for 12V or 24V systems
• LED indication
• Optional remote monitor and temperature sensor
Backed by a 2-year REDARC warranty. The 4x4 Store team can confirm it suits your panels and batteries.
It uses multi-stage charging, with a current rating of 20A and a maximum charging voltage of 14.8V / 29.6V. Standby current is under 4mA, and LED indication shows charging status. The SRP range is primarily used with REDARC's SMR fixed solar panels. With the Anderson™ to bare wire cable (SRC0016), it also works with REDARC solar blankets and folding panels. The battery setting defaults to AGM, and the Solar Remote Monitor (SRP0240-RM) is recommended to change battery types and configuration. Not compatible with Lithium (LiFePO4) batteries.
Key features:
• Dual battery outputs
• Multi-stage charging for 12V or 24V systems
• LED indication
• Optional remote monitor and temperature sensor
Backed by a 2-year REDARC warranty. The 4x4 Store team can confirm it suits your panels and batteries.
| Category | Solar Regulator |
|---|
