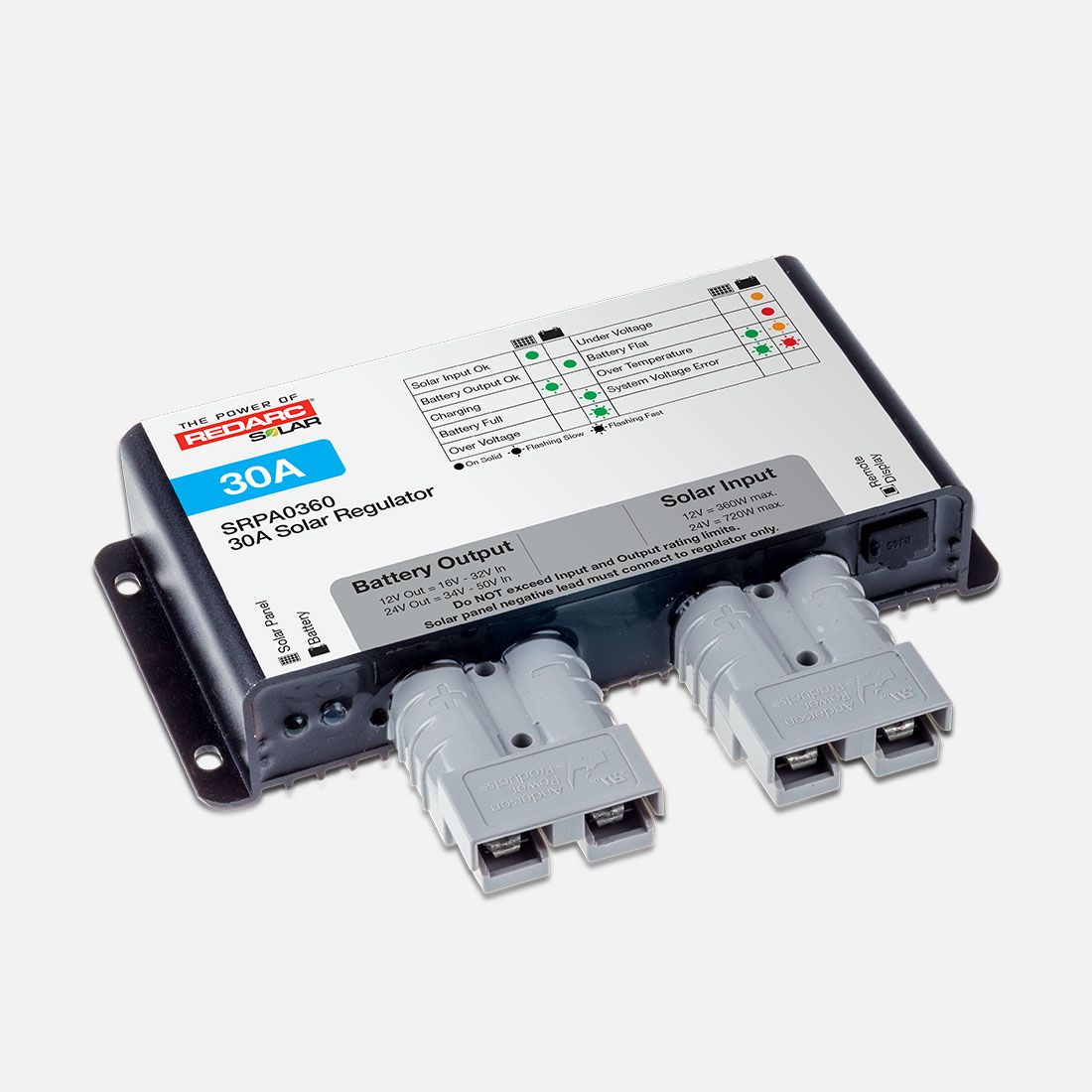

30 Amp Solar Regulator

The REDARC 30 Amp Solar Regulator is the one to choose when you are running multiple REDARC solar blankets at once. It transfers the power from your panels to the battery and makes sure the charge is supplied safely and efficiently.

Multi-stage charging (boost, absorption and float) protects the battery from over charging. It accepts 12V or 24V input and delivers a maximum rated output current of 30A, making it the minimum regulator size REDARC specifies for its 300W solar blanket. It suits permanent or portable systems, with Anderson™ SB™ 50 plug-and-play connectors. The battery setting defaults to AGM; the REDARC Solar Remote Monitor is required to change battery types and configuration. Not compatible with Lithium (LiFePO4) batteries.

Key features:
• 30A output for larger and multi-blanket setups
• Multi-stage boost, absorption and float charging
• Over temperature, over charge and reverse polarity protection
• Anderson™ SB™ 50 plug connection

Backed by a 2-year REDARC warranty. The 4x4 Store team can size a regulator to your solar array.
