Multi Function Timer
Regular price
$219.00
Sale price
$219.00
Regular price
Unit price
Check in-store availability
Description
Product Details

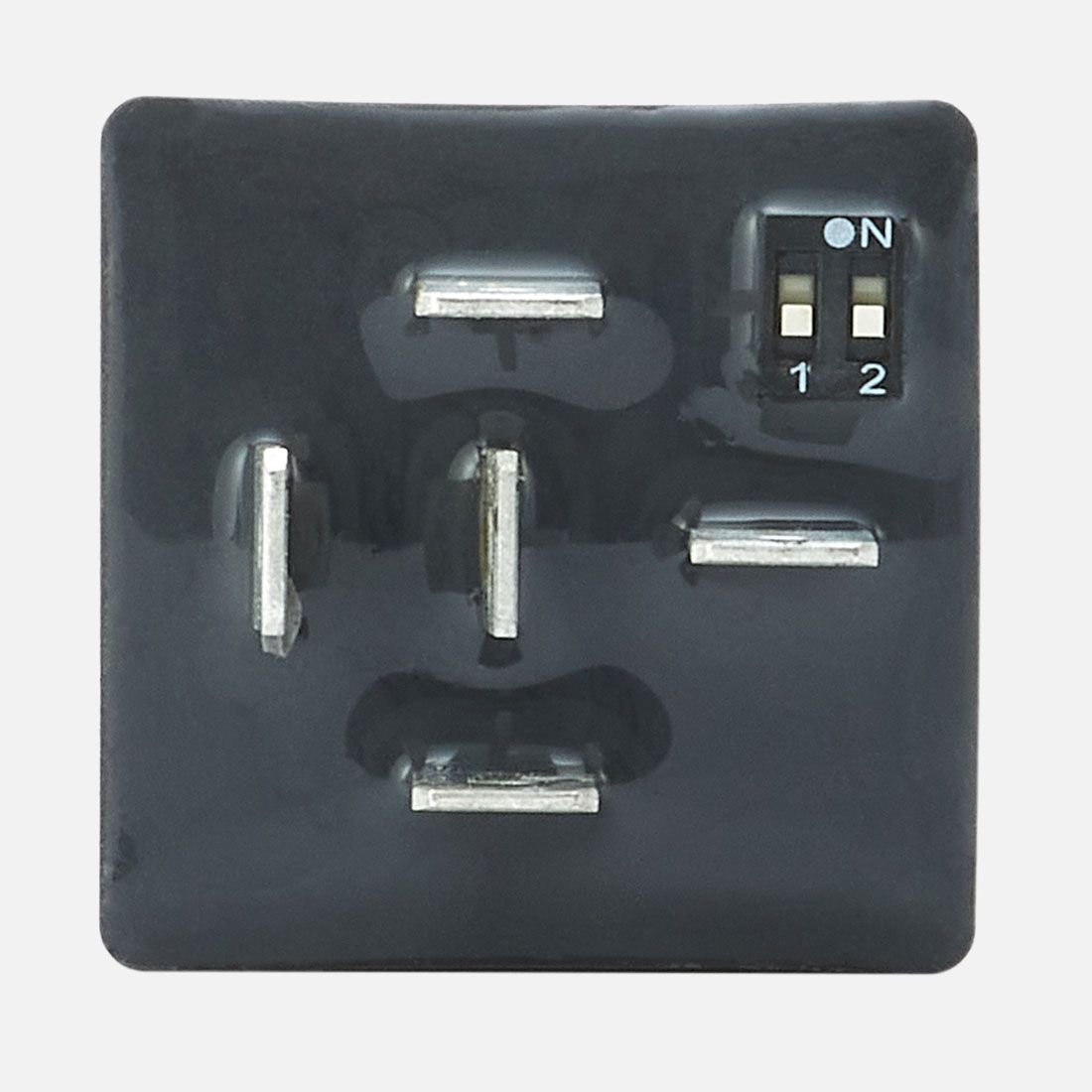

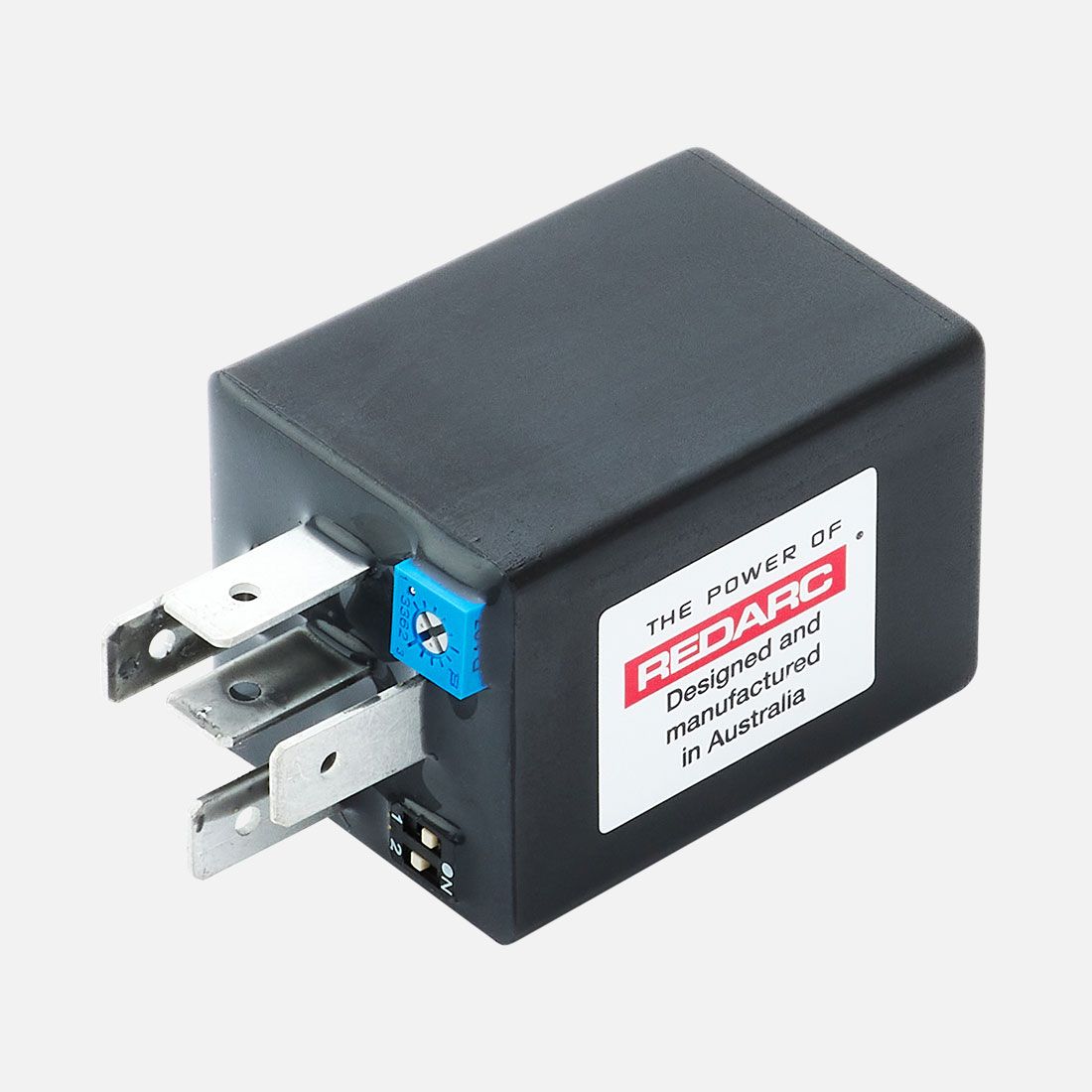

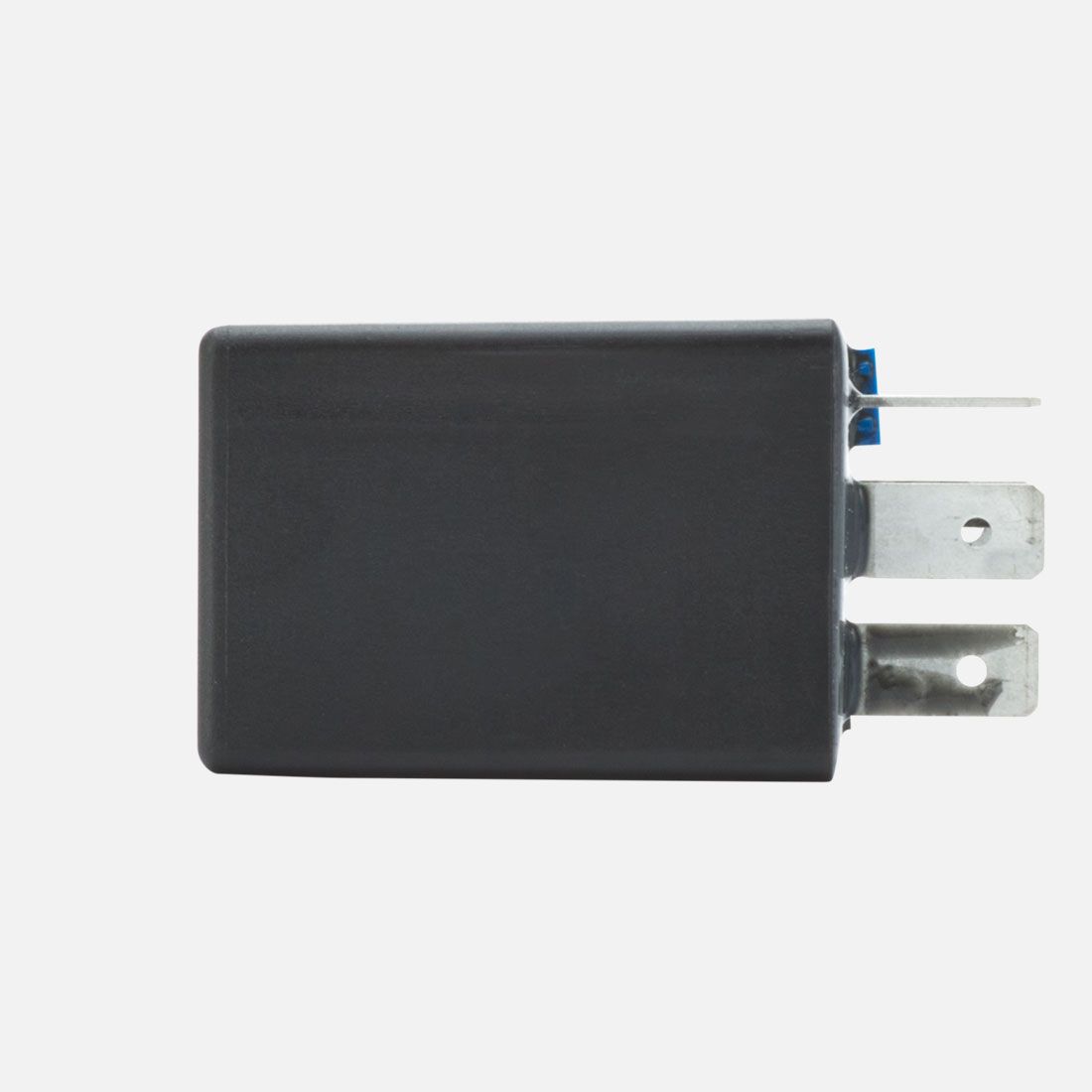

Add adjustable timed switching to a 12V or 24V vehicle with the REDARC Multi-Function Timer (TIM05). It drops into a standard automotive relay base and suits mobile or stationary installations.
Designed for negative ground systems, it shares the pin numbers of a standard automotive relay and works like a changeover relay, switching positive output to PIN 87. Trigger it by switching PIN 86 on or off, as set by Switch 1. Use Switch 2 to pick seconds or minutes, then turn the potentiometer clockwise to increase the time from 1 to 60. It supplies up to 10A.
Key features:
• User adjustable 1 to 60 seconds or minutes
• Changeover type relay
• Up to 10A output
• Plugs into a standard relay base
Covered by a 2-year REDARC warranty. Talk to The 4x4 Store team about the right timer setup for your job.
Designed for negative ground systems, it shares the pin numbers of a standard automotive relay and works like a changeover relay, switching positive output to PIN 87. Trigger it by switching PIN 86 on or off, as set by Switch 1. Use Switch 2 to pick seconds or minutes, then turn the potentiometer clockwise to increase the time from 1 to 60. It supplies up to 10A.
Key features:
• User adjustable 1 to 60 seconds or minutes
• Changeover type relay
• Up to 10A output
• Plugs into a standard relay base
Covered by a 2-year REDARC warranty. Talk to The 4x4 Store team about the right timer setup for your job.
| Category | Relay & Timer |
|---|
