Multi Function Timer
Regular price
$219.00
Sale price
$219.00
Regular price
Unit price
Check in-store availability
Description
Product Details

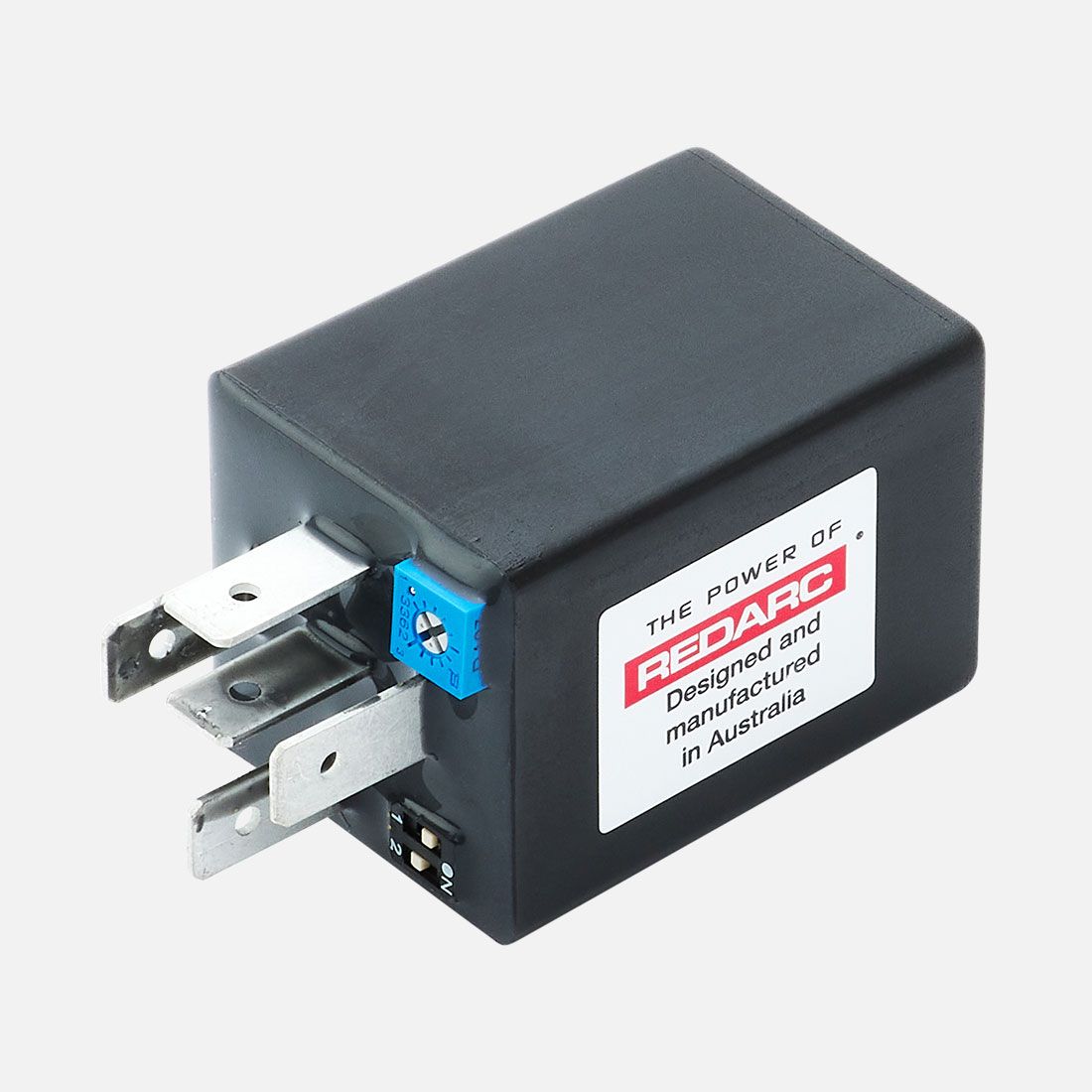

The REDARC Multi-Function Timer (TIM06) is a timer relay for 12V and 24V negative ground automotive systems. It plugs into a standard automotive relay base, giving you adjustable timed switching without custom wiring.

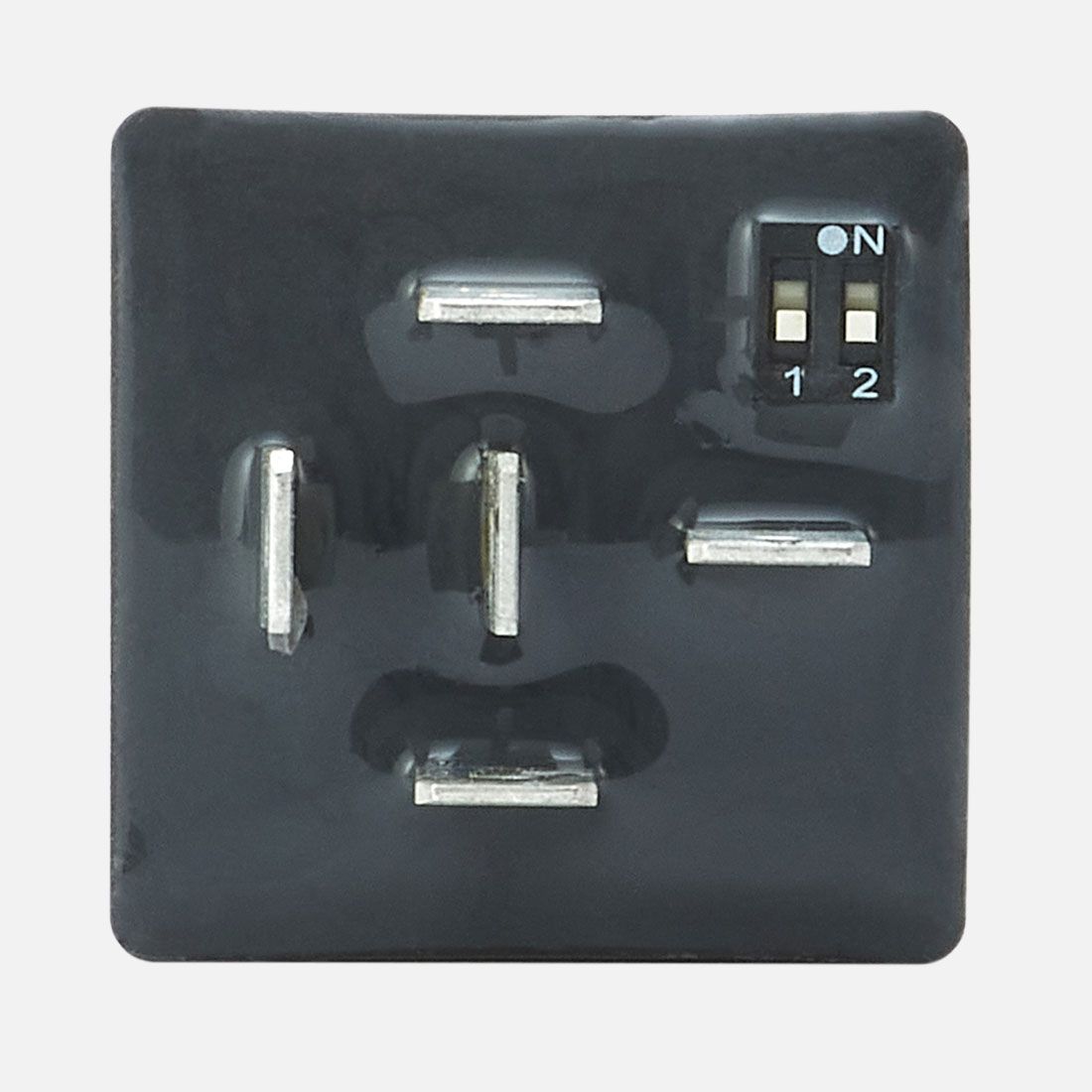

The pin numbers match a standard automotive relay, and contacts operate like a changeover relay with positive output on PIN 87. The timer starts by switching PIN 86 on or off, depending on Switch 1. Switch 2 selects seconds or minutes, and the potentiometer sets the time from 1 to 60. Maximum output current is 10A. REDARC recommends installation by a qualified auto electrician or REDNetwork installer.
Key features:
• 12V / 24V operation
• Adjustable from 1 to 60 seconds or minutes
• 10A maximum output current
• Standard automotive relay base
Backed by a 2-year REDARC warranty. The 4x4 Store team can help you choose between the TIM05 and TIM06.
The pin numbers match a standard automotive relay, and contacts operate like a changeover relay with positive output on PIN 87. The timer starts by switching PIN 86 on or off, depending on Switch 1. Switch 2 selects seconds or minutes, and the potentiometer sets the time from 1 to 60. Maximum output current is 10A. REDARC recommends installation by a qualified auto electrician or REDNetwork installer.
Key features:
• 12V / 24V operation
• Adjustable from 1 to 60 seconds or minutes
• 10A maximum output current
• Standard automotive relay base
Backed by a 2-year REDARC warranty. The 4x4 Store team can help you choose between the TIM05 and TIM06.
| Category | Relay & Timer |
|---|
