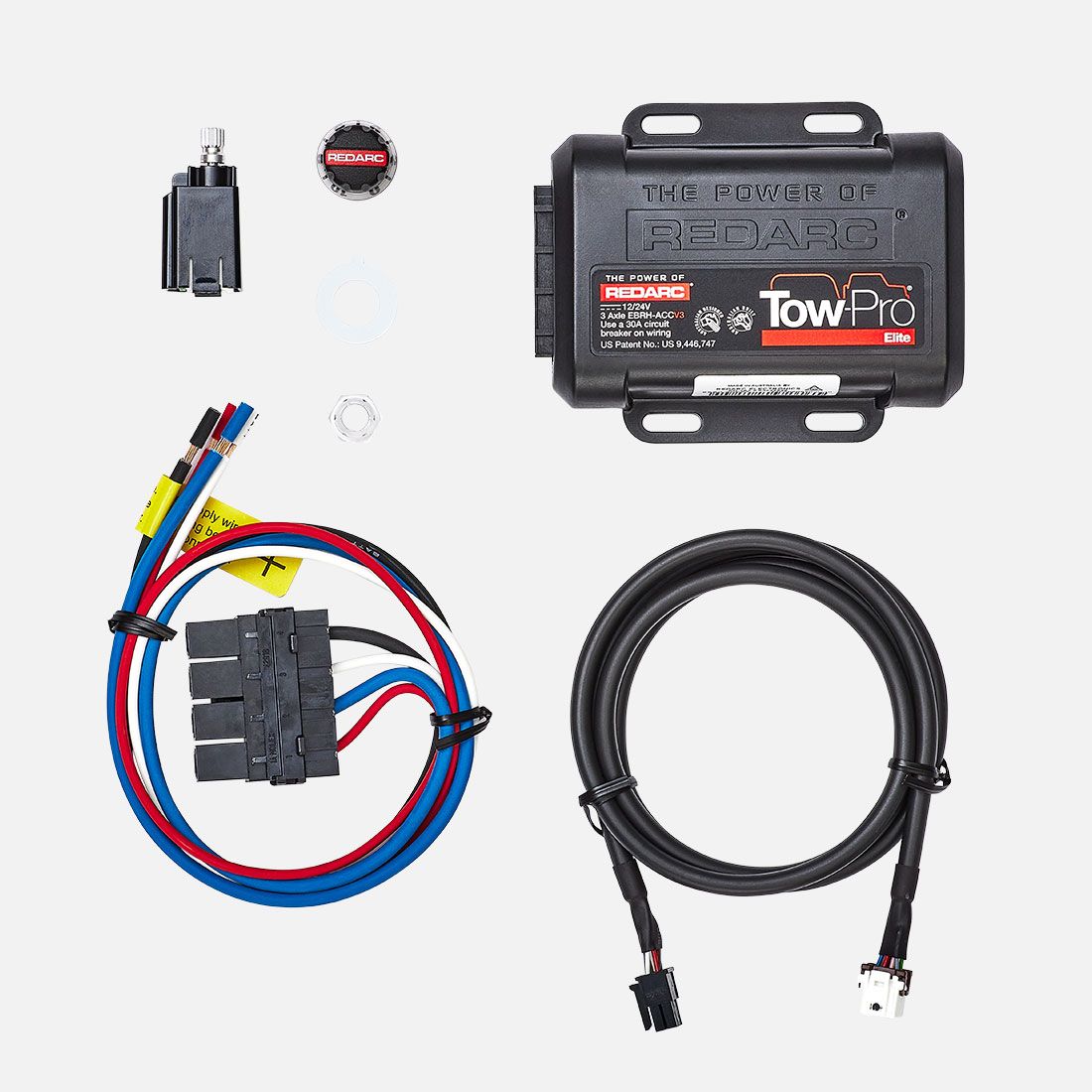

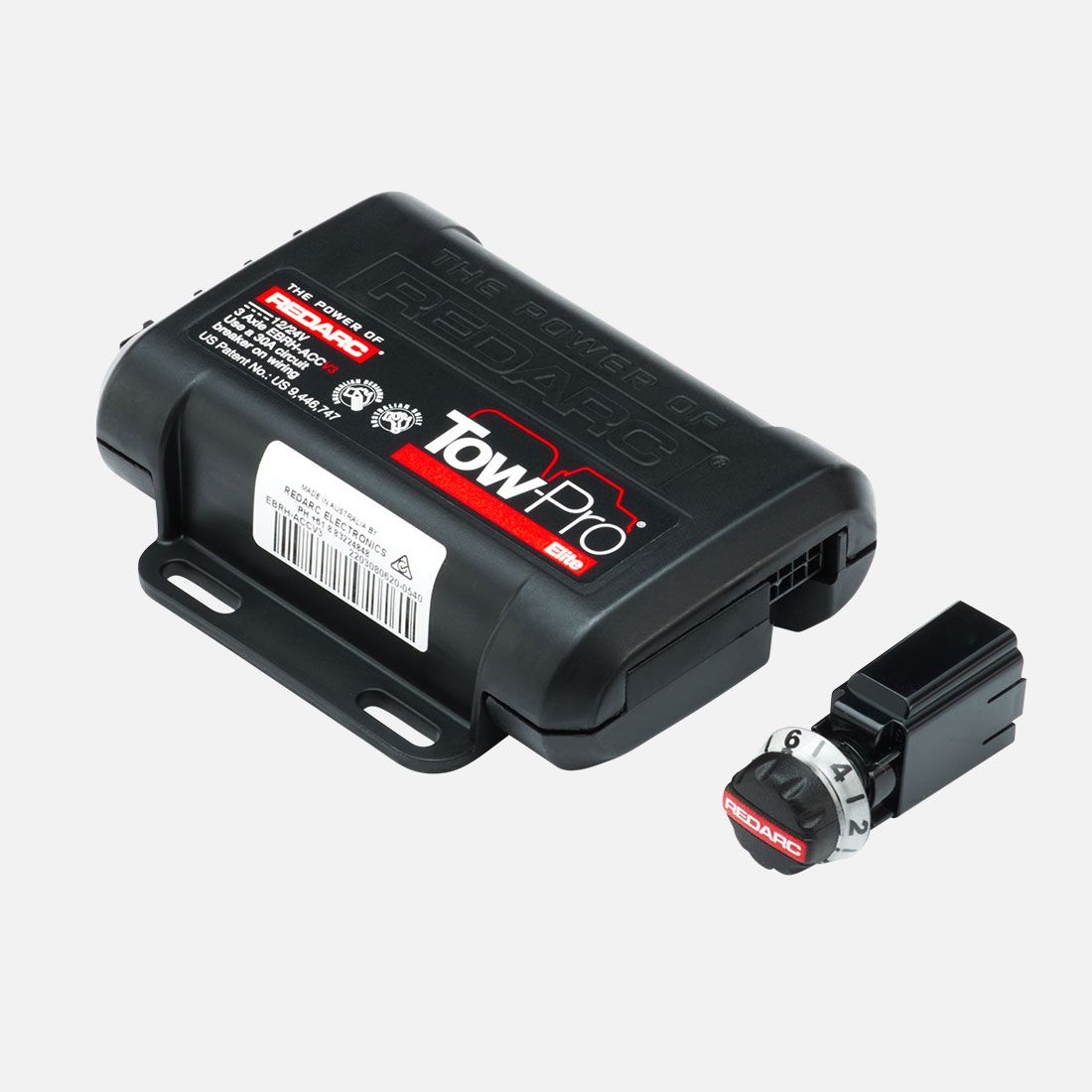

TOW-PRO ELITE Electric Brake Controller

The REDARC Tow-Pro Elite V3 is an in-cab electric trailer brake controller with two braking modes for controlled towing on and off-road. It suits 12V and 24V vehicles and works with electric and electric/hydraulic trailer brakes.

Proportional (automatic) mode gives smooth braking on highways and gravel. User-controlled mode lets you set the braking level for sand, mud and dirt. The main unit hides behind the dash, away from your knees and airbag, leaving only the dial visible. It retains Active Calibration, ensures an ADR approved installation, and is approved by AL-KO for its ESC and DSC systems. The remote head fits thicker and curved dashes found in European vehicles and trucks.

Key features:
• Operating voltage 9 to 32V
• Maximum current 25A on 12V vehicles, 30A on 24V vehicles
• Manual override button to apply trailer brakes and pull a swaying trailer into line
• Works with selected TPSI switch inserts and TPW wiring kits

The 4x4 Store can match the right wiring kit and switch insert to your vehicle. Backed by a 2-year REDARC warranty.
