10A 4 Circuit Compact Trailer Lighting Reducer
Regular price
$459.00
Sale price
$459.00
Regular price
Unit price
Check in-store availability
Description
Product Details

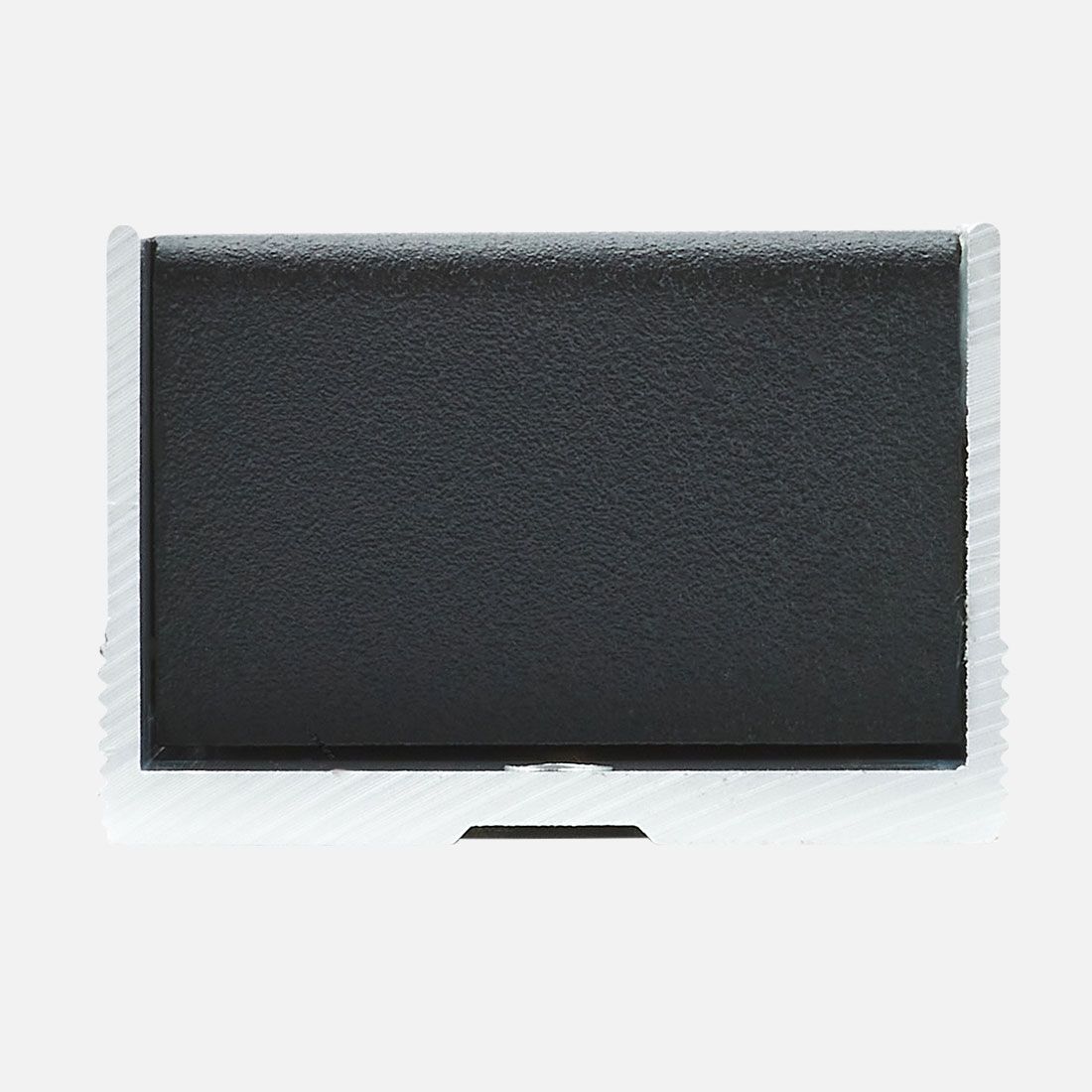

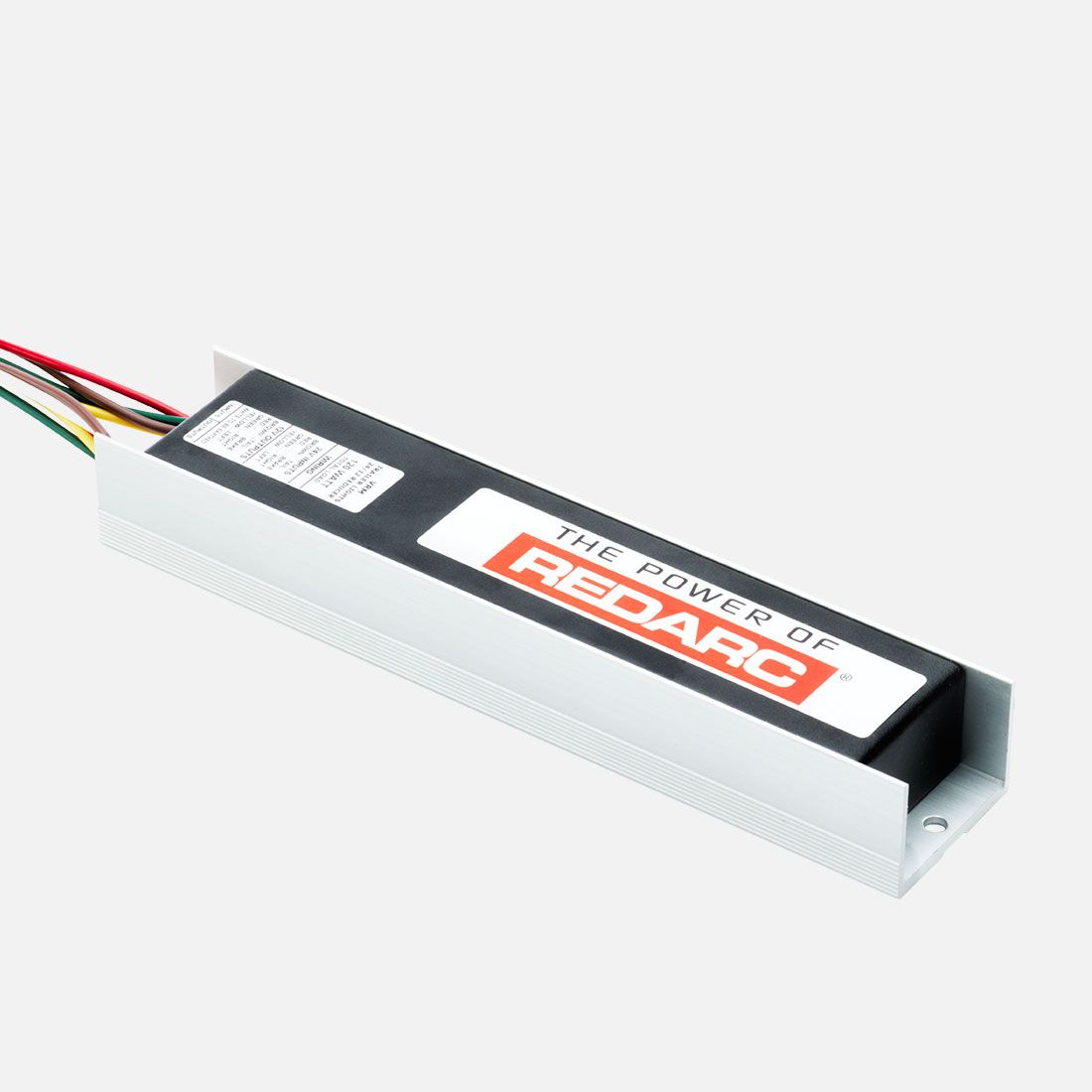

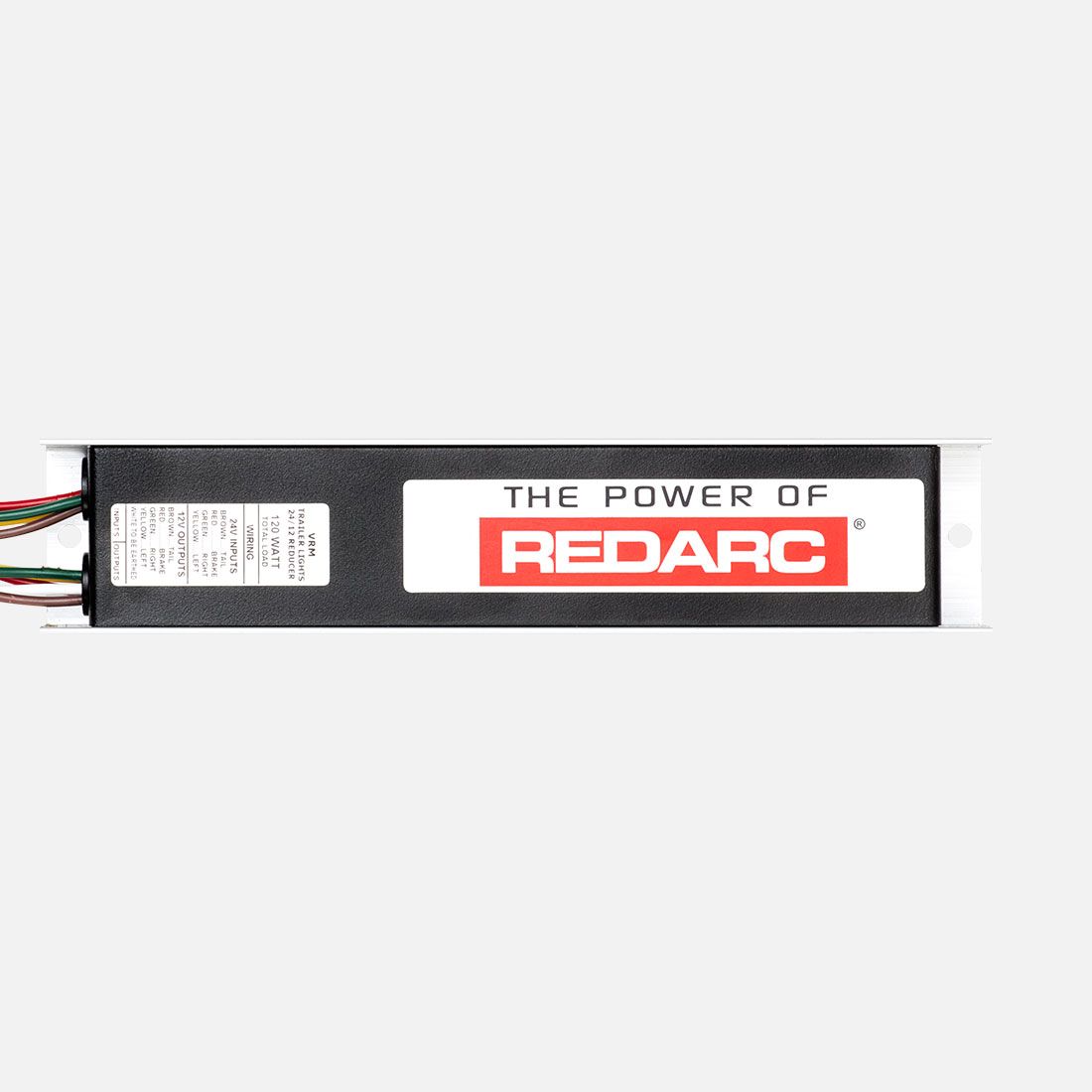

The REDARC 10A 4 Circuit Compact Trailer Lighting Reducer lets a 24V vehicle run the lights on a 12V trailer. It provides 12V circuits for brake, tail and indicator lamps.
Its 12V RMS output operates both incandescent lamps and LEDs, from an input of 20 to 33V DC. Rated to 10A, the highly efficient design is fully encapsulated and protected against overload and short circuit, so it can be mounted in exposed locations like the chassis rail. It measures 30 mm x 44 mm x 210 mm and weighs 500g.
Key features:
• Four 12V lighting circuits
• 10A maximum rated output current
• Suitable for LED and incandescent lamps
• Overload and short circuit protection
Covered by a 2-year REDARC warranty. Need reversing lights on the trailer too? The 4x4 Store team can point you to the 5 circuit version.
Its 12V RMS output operates both incandescent lamps and LEDs, from an input of 20 to 33V DC. Rated to 10A, the highly efficient design is fully encapsulated and protected against overload and short circuit, so it can be mounted in exposed locations like the chassis rail. It measures 30 mm x 44 mm x 210 mm and weighs 500g.
Key features:
• Four 12V lighting circuits
• 10A maximum rated output current
• Suitable for LED and incandescent lamps
• Overload and short circuit protection
Covered by a 2-year REDARC warranty. Need reversing lights on the trailer too? The 4x4 Store team can point you to the 5 circuit version.
